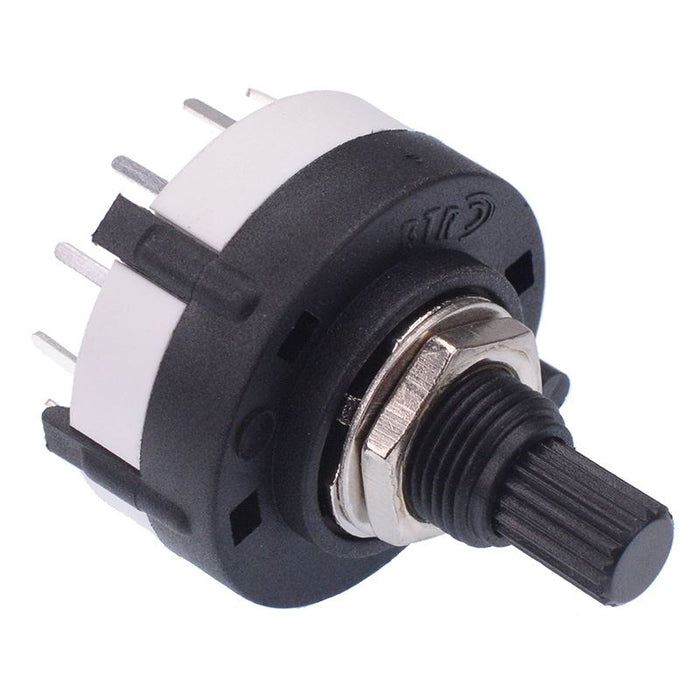

4 Pole 3 Way Rotary Switch Splined Shaft PCB Terminals
SKU 486504
MPN: 486504
Availability:
52 in stock
Original price
£1.79
-
Original price
£1.79
Original price
£1.79
Inc VAT
£1.79
-
£1.79
Current price
£1.79
Inc VAT
4 pole break before make rotary switch featuring 3 ways and 18T splined 6mm shaft. The switch features PCB terminals and are suitable for a wide range of through hole applications.
4 pole 3 way 18T splined shaft PCB terminals Break before make 7.5mm shaft length Complete with nut, washer and position stop Dimensions: 33 x 26mm (Height x Diameter)
Specification
| Back order lead time | 30 Days |
| Contact configuration | 4P3T |
| Contact rating | 2.5A 125VAC, 0.35A 125VDC |
| Current rating | 2.5A @ 125VAC |
| Electrical life | 15,000 Cycles |
| Material | Nylon |
| Mounting style | PCB |
| Number of poles | 4 |
| Number of ways | 3 |
| Operating force | 400gf |
| Operating temperature | -30°C to +85°C |
| Panel cut out | 10mm |
| Terminal type | Solder |
| Voltage rating | 125VAC |
