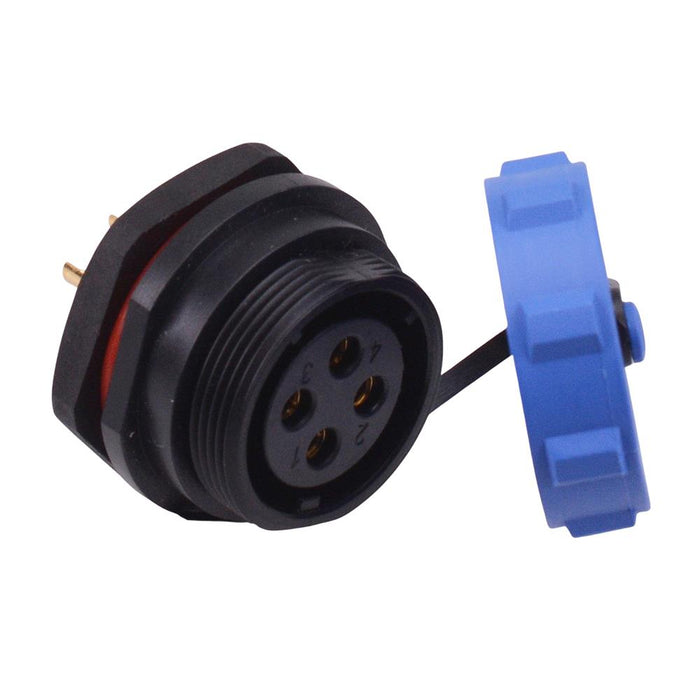

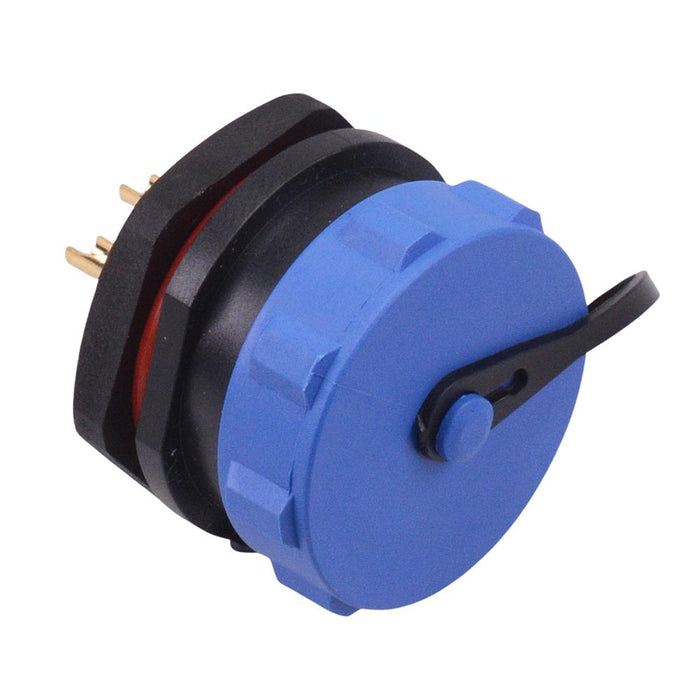

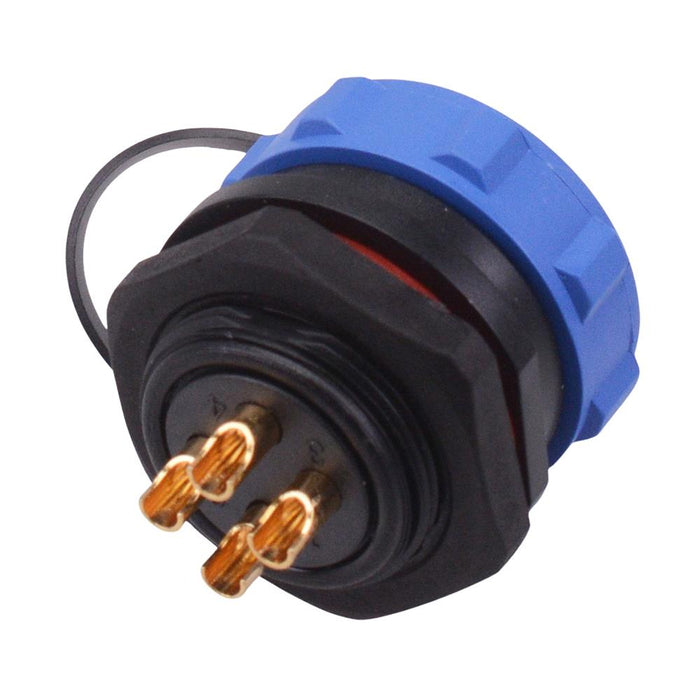

4 Pin Waterproof W21 Female Socket Panel Mount Connector IP68
SKU 490959
MPN: SE-W21A2-04
Availability:
42 in stock
Original price
£3.48
-
Original price
£3.48
Original price
£3.48
£3.66
£3.66
-
£3.66
Current price
£3.66
4 way 21mm female circular socket featuring IP68 protection rating and solder terminals. The connector features a compact design, suitable for panel mount applications requiring a waterproof rugged connector.
Protection level: IP68 Rating: 30A 500V Panel cut-out: 21.0mm Solder termination Wire size: ≤ 11AWG Rated for 500 mating cycles Dimensions: 26.0 x 29.0mm (length x diameter)
Specification
| Back Order Lead Time | 30 Days |
| Contact Material | Gold Plated Brass |
| Current Rating | 30A |
| Gender | Female |
| Housing Material | PPO, PA66 |
| MOQ | 1 |
| Mounting Type | Panel |
| Number of Ways | 4 |
| Operating Temperature | -25°C to +80°C |
| Panel Cut Out | 21mm |
| Panel Thickness | 3mm Max |
| Protection Level | IP68 |
| Termination Method | Solder |
| Thread Size | W21 |
| Voltage Rating | 500V |
| Wire Range | ≤11AWG |
