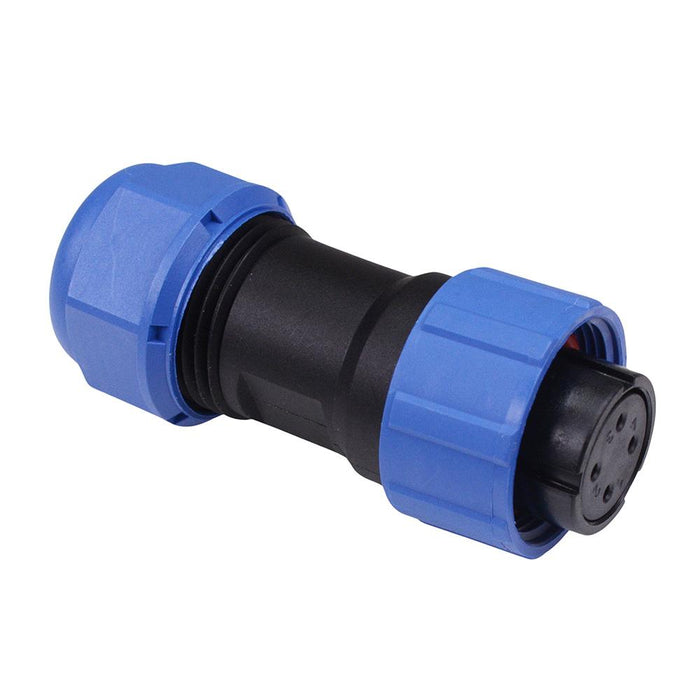

4 Pin Waterproof W17 Female Plug Cable Connector IP68 5A
SKU 488528
MPN: 488528
Availability:
190 in stock
Original price
£3.51
-
Original price
£3.51
Original price
£3.51
£3.51
£3.51
-
£3.51
Current price
£3.51
4 way female plug featuring IP68 protection and 5A current rating, suitable for applications requiring a waterproof and rugged circular connector.
Outer cable diameter: 6-10mm Protection level: IP68 Rating: 5A 500V Solder termination Rated for 500 mating cycles Dimensions: 56 x 23.6mm (length x diameter)
Specification
| Back Order Lead Time | 30 Days |
| Contact Material | Gold Plated Brass |
| Current Rating | 5A |
| Gender | Female |
| Housing Material | PA66 |
| Mounting Type | Cable Mount |
| Number of Ways | 4 |
| Operating Temperature | -25°C to +80°C |
| Protection Level | IP68 |
| Termination Method | Solder |
| Thread Size | W17 |
| Voltage Rating | 500V |
| Wire Range | ≤18AWG |
