3637NF/2G APEM (On)-Off-(On) Momentary Sealed 12mm Black Toggle Switch DPDT IP67 12A 28VDC
by APEM
SKU 489816
MPN: 3637NF/2G
Availability:
150 in stock
Original price
£21.83
-
Original price
£21.83
Original price
£21.83
Inc VAT
£21.83
-
£21.83
Current price
£21.83
Inc VAT

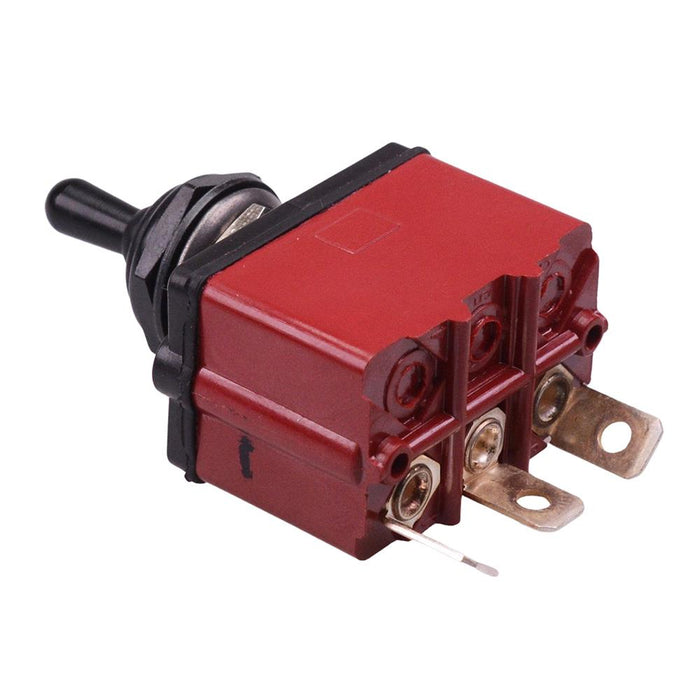

The 3637NF/2G is a high performance toggle switch manufactured by APEM, featuring SPDT contacts and quick connect terminals. The switch features a 12A 28VDC rating and is sealed to IP67 making it suitable for outdoor applications.
SPDT contacts (On)-Off-(On) momentary function Solder lug / quick connect terminals Rating: 12A 28VDC IP67 protection rating Solid silver contacts Panel cut-out: 12.2mm Panel thickness: 2mm max. with all accessories
Specification
| Actuation | Momentary |
| Contact configuration | DPDT |
| Contact material | Silver |
| Contact rating | 12A 28VDC |
| Current rating | 12A |
| Electrical life | 10,000 Cycles |
| Illuminated | No |
| Material | Phenolic Resin |
| Moq | 1 |
| Mounting style | Panel |
| Number of poles | 2 |
| Number of positions | 3 |
| Operating temperature | -40°C to +85°C |
| Panel cut out | 12.2mm |
| Panel thickness | 2mm |
| Product series | 3600NF |
| Protection level | IP67 |
| Switch operation | (On)-Off-(On) |
| Terminal type | Quick Connect |
| Voltage rating | 28VDC |
