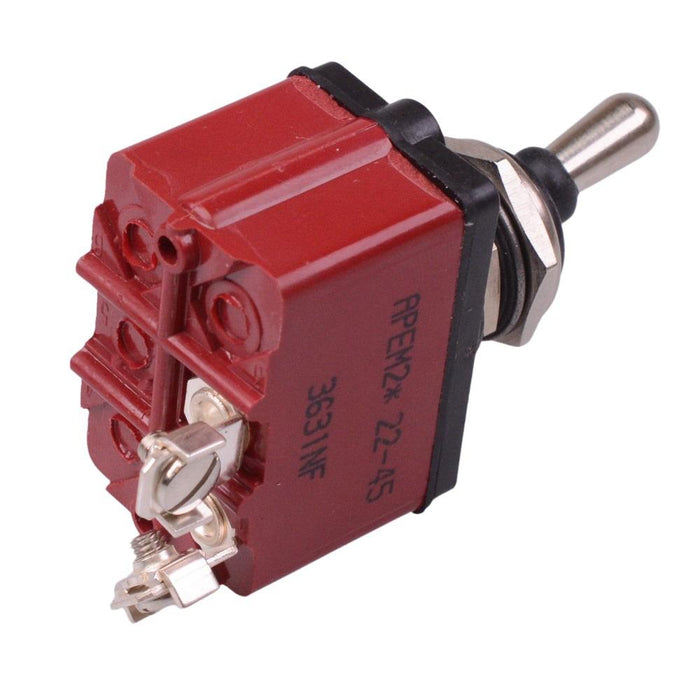

3631NF APEM On-Off Sealed 12mm Toggle Switch SPST IP67 12A 28VDC
by APEM
SKU 489815
MPN: 3631NF
Availability:
Out of stock
Sold out
Original price
£23.11
-
Original price
£23.11
Original price
£23.11
£23.11
£23.11
-
£23.11
Current price
£23.11
The 3631NF is a high performance toggle switch manufactured by APEM, featuring SPST contacts and screw terminals. The switch features a 12A 28VDC rating and is sealed to IP67 making it suitable for outdoor applications.
SPST contacts On-Off function Screw terminals Rating: 12A 28VDC IP67 protection rating Solid silver contacts Panel cut-out: 12.2mm Panel thickness: 2mm max. with all accessories
Specification
| Actuation | Latching |
| Contact Configuration | SPST |
| Contact Material | Silver |
| Contact Rating | 12A 28VDC |
| Current Rating | 12A |
| Electrical Life | 10,000 Cycles |
| Illuminated | No |
| Material | Phenolic Resin |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 12.2mm |
| Panel Thickness | 2mm |
| Product Series | 3600NF |
| Protection Level | IP67 |
| Switch Operation | On-Off |
| Terminal Type | Screw |
| Voltage Rating | 28VDC |
