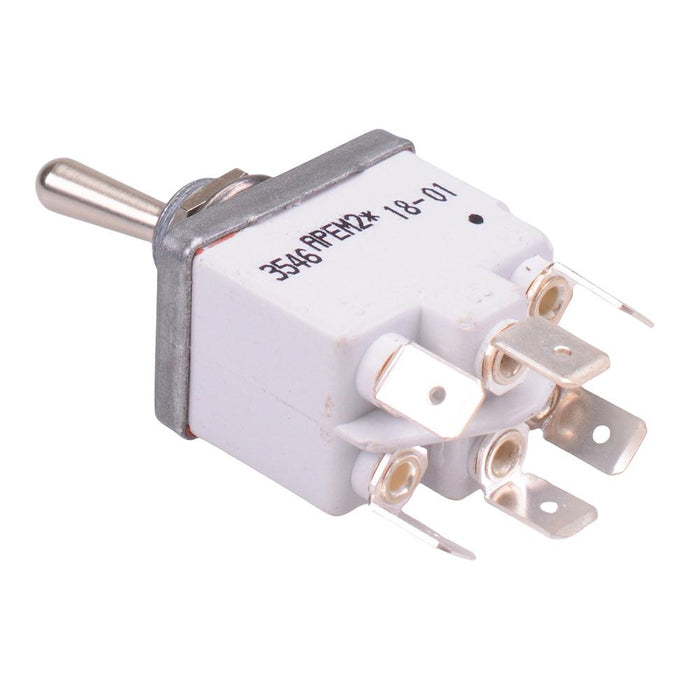

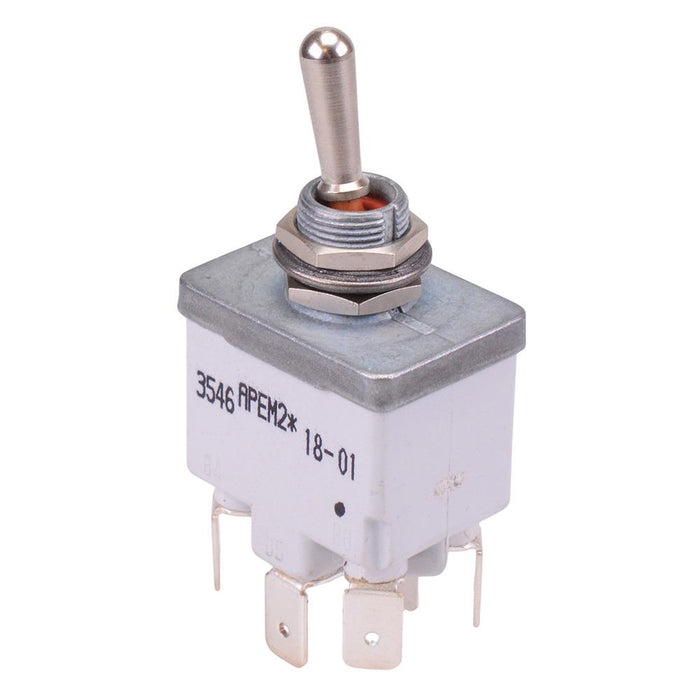

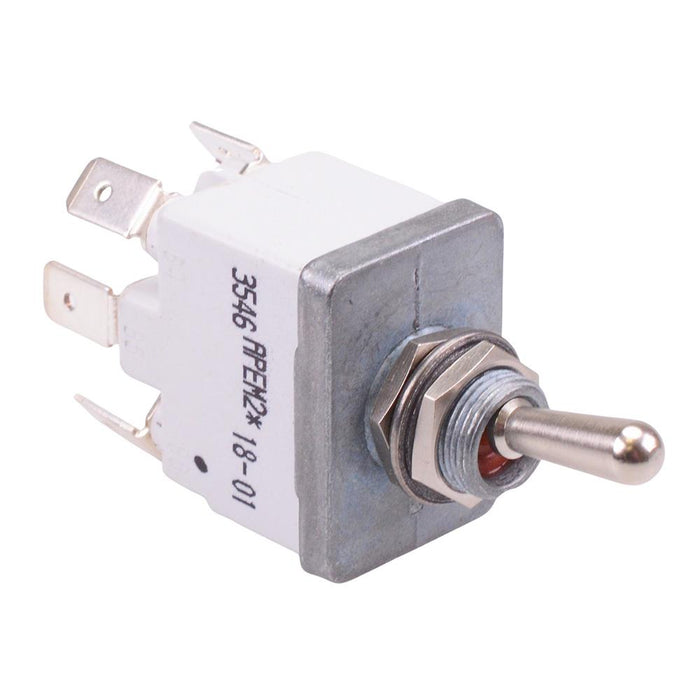

3546-031N002 On-On High Performance 12mm Toggle Switch DPDT APEM
by APEM
SKU 492436
MPN: 3546-031N002
Availability:
Only 4 left!
Original price
£41.06
-
Original price
£41.06
Original price
£41.06
£41.06
-
£41.06
Current price
£41.06
The 3546-031N002 are high performance toggle switches by APEM, featuring a sealed construction and On-On DPDT contacts. The switch features screw terminals and IP67 protection rating, suitable for demanding applications.
- On-On function
- DPDT contacts
- IP67 protection rating
- Screw terminals
- Rating: 15A 28VDC
- Panel cut-out: 12.2mm
Specification
| Actuation | Latching |
| Back Order Lead Time | 120 Days |
| Contact Configuration | DPDT |
| Contact Material | Silver Alloy |
| Contact Rating | 15A 28VDC |
| Current Rating | 15A |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 12.2mm |
| Panel Thickness | 5mm Max |
| Product Series | 3500 |
| Switch Operation | On-On |
| Terminal Type | Screw |
| Voltage Rating | 28VDC |
