30mm Lever Waterproof Prewired Microswitch SPDT 10A IP67

30mm Lever Waterproof Prewired Microswitch SPDT 10A IP67

by Switch Electronics
SKU 481710

MPN: 481710

Availability:
114 in stock
£3.30 - £3.30
£3.30
£3.30 - £3.30
£3.30

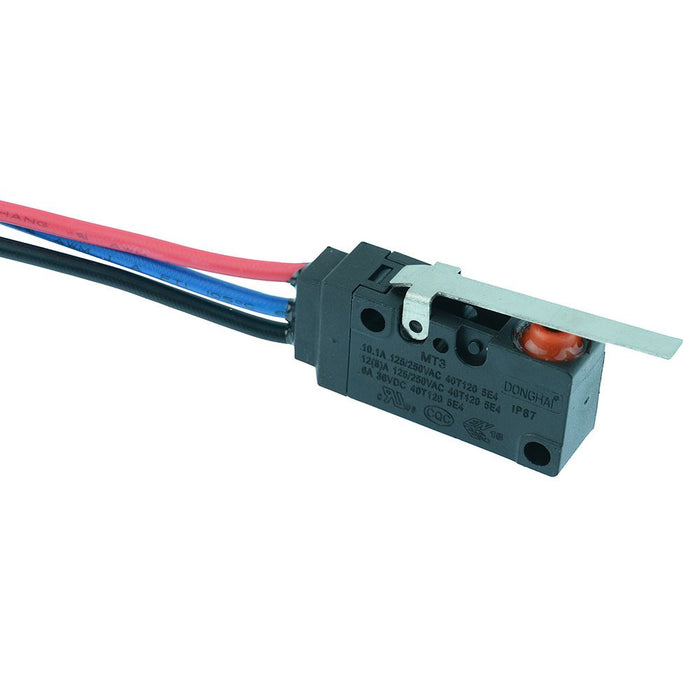

Microswitch featuring a 30mm lever actuator, housed in a waterproof compact package capable of switching up to 10A. The switch features flying leads and is suitable for domestic and industrial applications.

  • 30mm lever actuator
  • Rating: 10A 250VAC
  • NO / NC contacts
  • 300mm 20awg flying leads
  • Operating force: 300gf max
  • Body dimensions: 33 x 10.3 x 15.8mm (Length x Width x Height)
    • Download Product Data Sheet PDF
    Specification
    Back Order Lead Time 45 Days
    Contact Configuration SPDT
    Contact Rating 10A 250VAC
    Current Rating 10A
    Electrical Life 100,000 Cycles
    Number of Positions 2
    Operating Force 300gf Max
    Protection Level IP67
    Terminal Type Leads
    Voltage Rating 250VAC
    Request a quote

    Customer Reviews

    Based on 1 review
    100%
    (1)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    P
    Peter Pullen

    Excellent product excellent service, switch arrived two days after I ordered it . I needed a waterproof switch for a job I was doing on my motorcycle and having used Switch Electronics before I knew they would have what I needed and they did. Thank you Switch Electronics.
