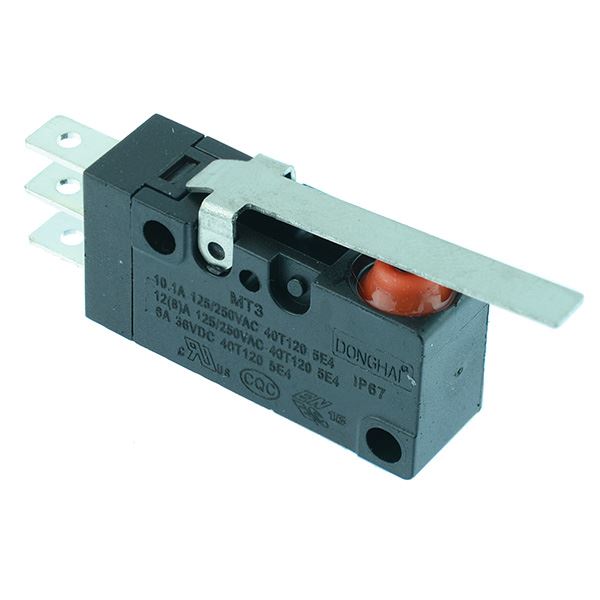

30mm Lever Waterproof Microswitch SPDT 10A IP67

SKU 481706

MPN: 481706

Availability:
116 in stock
Original price £1.72 - Original price £1.72
Original price
£1.72
£1.72 - £1.72
Current price £1.72
Microswitch featuring a lever actuator, housed in a waterproof compact package capable of switching up to 10A. The switch features quick connect terminals and is suitable for domestic and industrial applications.

  • 30mm lever actuator
  • Rating: 10A 250VAC
  • NO / NC contacts
  • 4.8mm quick connect terminals
  • Operating force: 300gf max
  • Body dimensions: 33 x 10.3 x 15.8mm (Length x Width x Height)
  • Specification
    Back Order Lead Time 45 Days
    Contact Configuration SPDT
    Contact Rating 10A 250VAC
    Current Rating 10A
    Electrical Life 100,000 Cycles
    Number of Positions 2
    Operating Force 300gf Max
    Protection Level IP67
    Terminal Type Quick Connect
    Voltage Rating 250VAC
