30-90k Light Dependent Photoresistor
by Token
SKU 552328
MPN: PGM5539
Availability:
1283 in stock
Original price
£0.22
-
Original price
£0.22
Original price
£0.22
Inc VAT
£0.22
-
£0.22
Current price
£0.22
Inc VAT

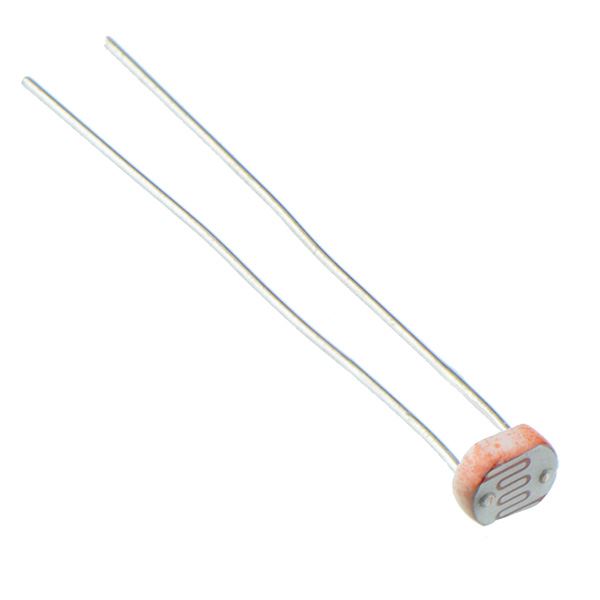

30-90kΩ light dependent cadmium sulfide photoresistor housed in a compact small package. The photo-resistor uses as a low cost photo sensitive element used for many years in photographic light meters as well as in other applications such as smoke, flame and burglar detectors, card readers and lighting controls for street lamps.
5mm diameter Epoxy package Resistance at 10lx: 30-90kΩ Power: 100mW Supply voltage: 150V DC
Specification
| Back order lead time | 5 Days |
| Led diameter | 5mm |
| Moq | 5 |
| Mounting style | Through Hole |
| Peak wavelength | 540nm |
| Power | 100mW |
| Resistance at 10lx | 30-90k |
| Supply voltage | 150VDC |
