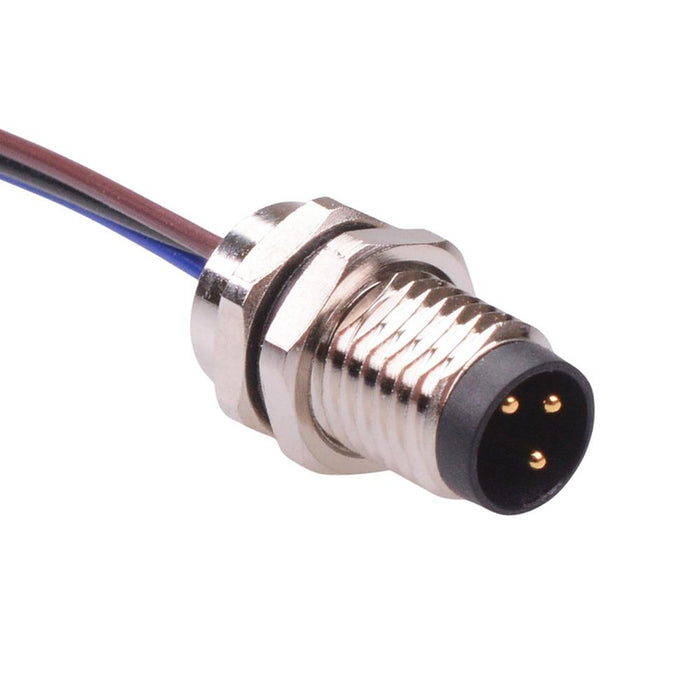

3 Way M8 Prewired Male Rear Mounting Receptacle Circular Connector IP67 3A
by Degson
SKU 488830
MPN: SD-M8A-03P-MM-SF7C50-00AH
Availability:
94 in stock
Original price
£4.76
-
Original price
£4.76
Original price
£4.76
£4.76
-
£4.76
Current price
£4.76
3 contact male receptacle featuring a M8 body with 50cm of PVC cable, designed for rear mounting to the panel. The circular connector utilises a space saving design, sealed to IP67 making it suitable for industrial and various other applications. The receptacle is compliant with IEC 61076 standard and is compatible with other connectors on the market with the same contact arrangement.
3 male contacts (A coded) M8*1.0 thread Prewired 0.5m 24AWG PVC cable Sealed to IP67 Unshielded Current rating: 3A Voltage rating: 60V Panel cut-out: 8mm Contact carrier material: PA Contact material: gold plated copper alloy Wiring list: 1 BN, 3 BU, 4 BK Body length: 16.5mm
Specification
| Back Order Lead Time | 120 Days |
| Contact Material | Gold Plated Copper Alloy |
| Current Rating | 3A |
| Gender | Male |
| Housing Material | Metal |
| Mounting Type | Panel Mount |
| Number of Ways | 3 |
| Operating Temperature | -25°C to +80°C |
| Panel Cut Out | 8mm |
| Protection Level | IP67 |
| Termination Method | Cable |
| Thread Size | M8 |
| Voltage Rating | 60V |
