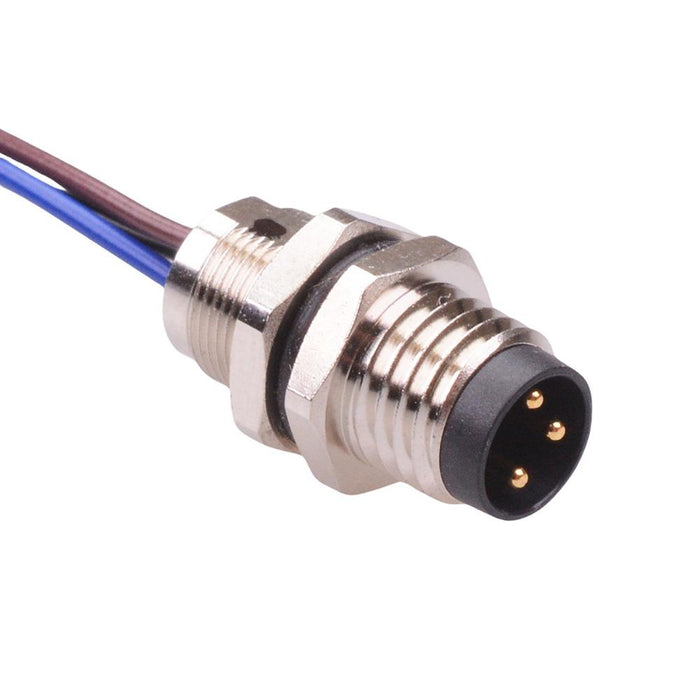

3 Way M8 Prewired Male Front Mounting Receptacle Circular Connector IP67 3A

by Degson
SKU 488832

MPN: SD-M8A-03P-MM-SH7B50-00AH

Availability:
99 in stock
Original price £3.23 - Original price £3.23
Original price
£3.23 Inc VAT
£3.23 - £3.23
Current price £3.23 Inc VAT
3 contact male receptacle featuring a M8 body with 50cm of PVC cable, designed for front mounting to the panel. The circular connector utilises a space saving design, sealed to IP67 making it suitable for industrial and various other applications. The receptacle is compliant with IEC 61076 standard and is compatible with other connectors on the market with the same contact arrangement.

  • 3 male contacts (A coded)
  • M8*1.0 thread
  • Prewired 0.5m 24AWG PVC cable
  • Sealed to IP67
  • Unshielded
  • Current rating: 3A
  • Voltage rating: 60V
  • Panel cut-out: 8mm
  • Contact carrier material: PA
  • Contact material: gold plated copper alloy
  • Wiring list: 1 BN, 3 BU, 4 BK
  • Body length: 17.5mm
  • Specification
    Back order lead time 120 Days
    Contact material Gold Plated Copper Alloy
    Current rating 3A
    Gender Male
    Housing material Metal
    Mounting type Panel Mount
    Number of ways 3
    Operating temperature -25°C to +80°C
    Panel cut out 8mm
    Protection level IP67
    Termination method Cable
    Thread size M8
    Voltage rating 60V
