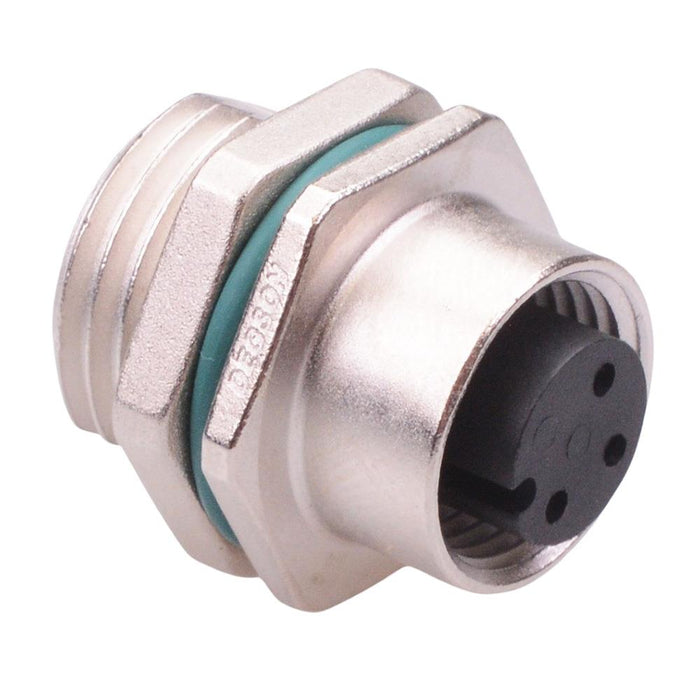

3 Way M12 Female Front Mounting Receptacle Circular Connector IP68 4A 250V

by Degson
SKU 488855

MPN: SD-M12A-03P-FF-SH8002-00AH

Availability:
100 in stock
Original price £3.85 - Original price £3.85
Original price
£3.85 Inc VAT
£3.85 - £3.85
Current price £3.85 Inc VAT
3 contact female receptacle featuring a M12 body with solder terminals, designed for front mounting to the panel. The connector is sealed to IP68 making it suitable for industrial, signal, power supply, data transmission and various other applications. The socket is compliant with IEC 61076 standard and is compatible with other connectors on the market with the same contact arrangement.

  • 3 female contacts (A coded)
  • M12*1.0 thread
  • Solder terminals
  • Sealed to IP68
  • Unshielded
  • Current rating: 4A
  • Voltage rating: 250V
  • Mounting thread: M16*1.5
  • Panel thickness: 4.5mm max
  • Contact carrier material: PA
  • Contact material: gold plated copper alloy
  • Body length: 20mm
  • Specification
    Back order lead time 120 Days
    Contact material Gold Plated Copper Alloy
    Current rating 4A
    Gender Female
    Housing material Metal
    Mounting type Panel Mount
    Number of ways 3
    Operating temperature -40°C to +105°C
    Panel cut out 16mm
    Protection level IP68
    Termination method Solder
    Thread size M12
    Voltage rating 250V
