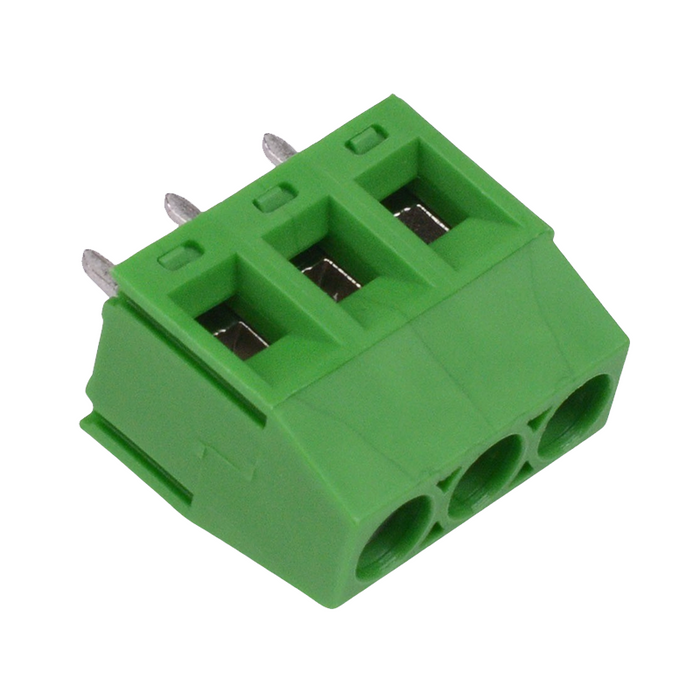

3-Way 5mm PCB Terminal Block Green 15A 300V

SKU 488471

MPN: AK350/03-5.0-V-GREEN

Availability:
200 in stock
Original price £1.19 - Original price £1.19
Original price
£1.19 Inc VAT
£1.19 - £1.19
Current price £1.19 Inc VAT
3 pole PCB terminal block manufactured by PTR HARTMANN, featuring a 5.00mm pitch and parallel wire entry to the board. The terminal blocks are rated up to 15A, making them suitable for a wide range of PCB applications.

  • 3 pole
  • 5.00mm pitch
  • Wire entry parallel to the board
  • Material: PA66
  • Rating: 15A 300V
  • Wire size: 22-12AWG
  • Specification
    Back order lead time 10 Days
    Colour Green
    Contact material Brass
    Current rating 15A
    Housing material PA66
    Mounting type PCB Mount
    Number of ways 3
    Operating temperature -40°C to +105°C
    Pitch 5.00mm
    Termination method Screw
    Voltage rating 300VAC
    Wire range 22-12AWG
