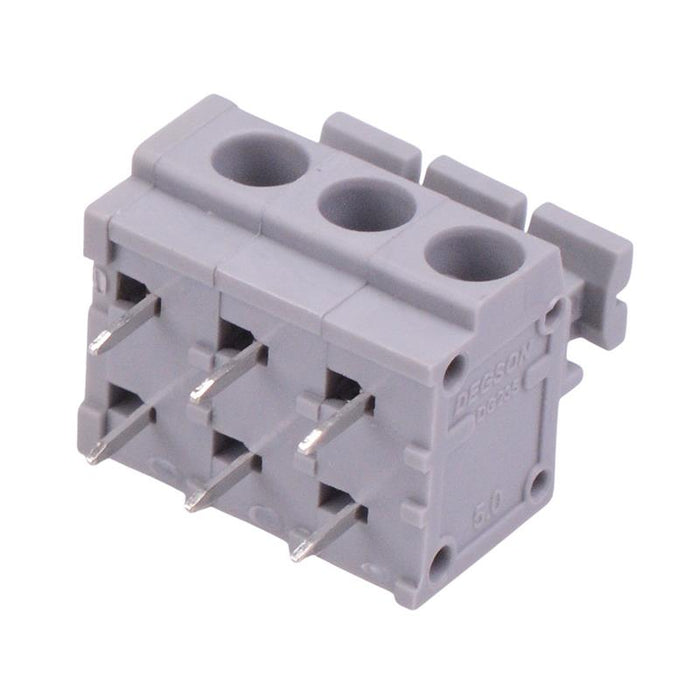

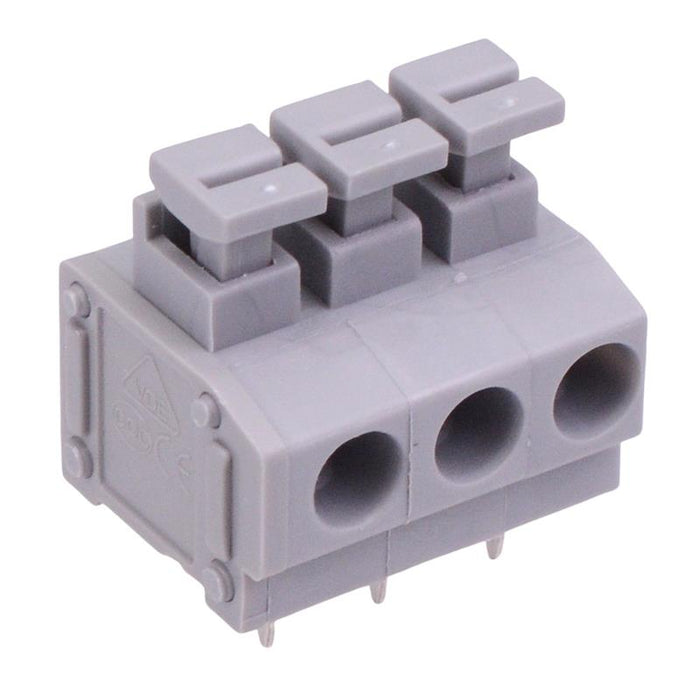

3-Way 5.00mm Push-In PCB Terminal Block 5A 300V
by Degson
SKU 488778
MPN: DG235-5.0-03P
Availability:
1790 in stock
Original price
£0.42
-
Original price
£0.42
Original price
£0.42
£0.44
£0.44
-
£0.44
Current price
£0.44
3 pole PCB terminal block by Degson, featuring a 5.0mm pitch and push-in termination. The terminal blocks are rated up to 5A, suitable for a wide range of PCB through hole applications.
3 pole 5.00mm pitch Push-in termination End stackable Material: PA66 Rating: 5A 300V PCB hole diameter: 1.2mm Height above PCB: 15.5mm Depth: 12.5mm Wire size: 20-18AWG
Specification
| Back Order Lead Time | 150 Days |
| Contact Material | Copper Alloy |
| Current Rating | 5A |
| Housing Material | PA66 |
| MOQ | 1 |
| Mounting Type | PCB Mount |
| Number of Ways | 3 |
| Operating Temperature | -40°C to +105°C |
| Pitch | 5.00mm |
| Termination Method | Through Hole |
| Voltage Rating | 300V |
| Wire Range | 20-18AWG |
