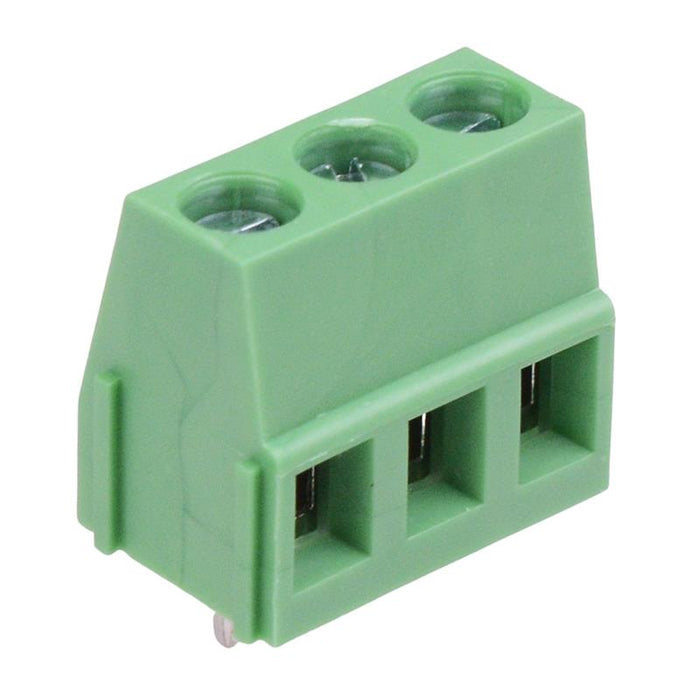

3-Way 5.00mm PCB Terminal Block 20A 300V
by Degson
SKU 488776
MPN: DG128-5.0-03P14
Availability:
2380 in stock
Original price
£0.32
-
Original price
£0.32
Original price
£0.32
£0.34
£0.34
-
£0.34
Current price
£0.34
3 pole PCB terminal block by Degson, featuring a 5.0mm pitch and end-stackable design. The terminal blocks are rated up to 20A, suitable for a wide range of PCB through hole applications.
3 pole 5.00mm pitch Vertical orientation Material: PA66 Rating: 20A 300V PCB hole diameter: 1.4mm Height above PCB: 14mm Depth: 10.2mm Wire size: 30-12AWG
Specification
| Back Order Lead Time | 150 Days |
| Contact Material | Copper Alloy |
| Current Rating | 20A |
| Housing Material | PA66 |
| MOQ | 1 |
| Mounting Type | PCB Mount |
| Number of Ways | 3 |
| Operating Temperature | -40°C to +105°C |
| Pitch | 5.00mm |
| Termination Method | Through Hole |
| Voltage Rating | 300V |
| Wire Range | 30-12AWG |
