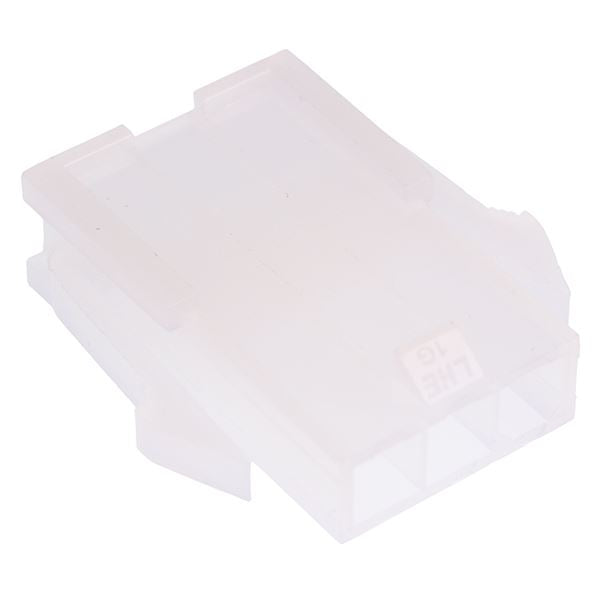

3 Way 4.2mm Mini-Fit Male Housing Connector
SKU 484698
MPN: 484698
Availability:
397 in stock
Original price
£0.18
-
Original price
£0.18
Original price
£0.18
Inc VAT
£0.18
-
£0.18
Current price
£0.18
Inc VAT
Single row 3 way male housing featuring 4.2mm pitch suitable for mating with a female receptacle. The connector features a lock to ensure secure retention when mated, suitable as a replacement for Molex Mini-Fit.
4.2mm pitch Nylon 66 housing Rated Current: 9A Rated Voltage: 300V Wire range: 16-28AWG
Specification
Back order lead time | 45 Days |
Contact material | Tin Plated Brass |
Current rating | 9A |
Housing material | PA66 |
Moq | 5 |
Mounting type | Cable Mount |
Number of ways | 3 |
Operating temperature | -25°C to +85°C |
Pitch | 4.2mm |
Termination method | Crimp |
Voltage rating | 300VAC |
Wire range | 28-16AWG |
