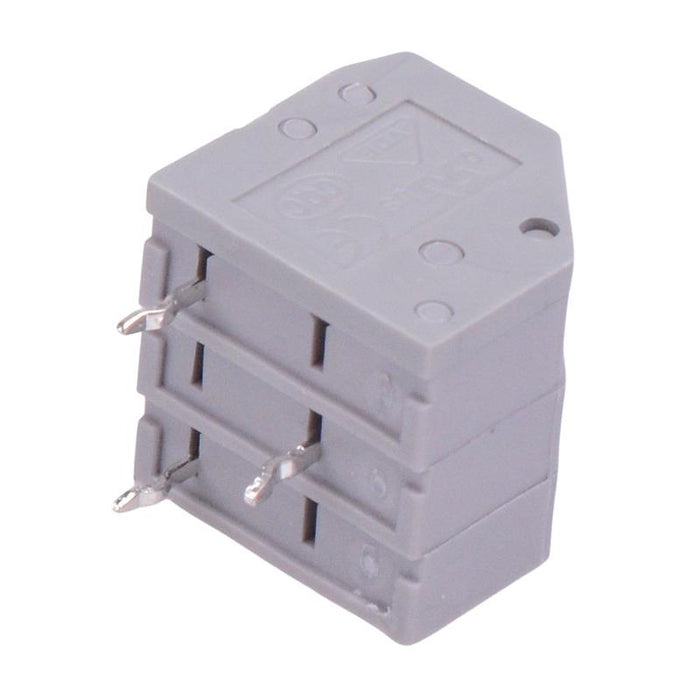

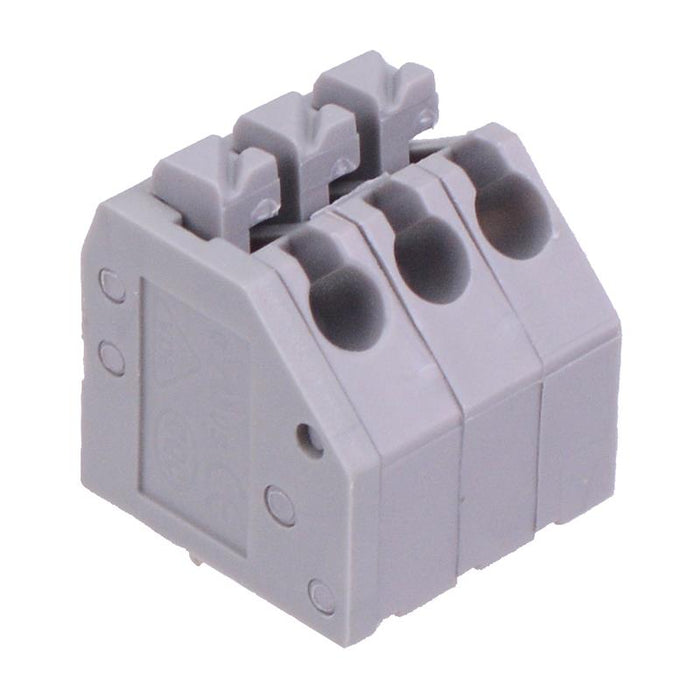

3-Way 3.5mm Push-In PCB Terminal Block 8A 300V
by Degson
SKU 488715
MPN: DG250-3.5-03P-11
Availability:
3200 in stock
Original price
£0.26
-
Original price
£0.26
Original price
£0.26
£0.27
£0.27
-
£0.27
Current price
£0.27
3 pole PCB terminal block by Degson, featuring a 3.5mm pitch and push-in termination. The terminal blocks are rated up to 8A and feature dual row pins, suitable for a wide range of PCB through hole applications.
3 pole 3.5mm pitch 45° cable entry Push-in termination Dual row pin layout Material: PA66 Rating: 8A 300V PCB hole diameter: 1.2mm Height above PCB: 13.1mm Depth: 12mm Wire size: 22-16AWG
Specification
| Back Order Lead Time | 150 Days |
| Contact Material | Copper Alloy |
| Current Rating | 8A |
| Housing Material | PA66 |
| MOQ | 1 |
| Mounting Type | PCB Mount |
| Number of Ways | 3 |
| Operating Temperature | -40°C to +105°C |
| Pitch | 3.5mm |
| Termination Method | Through Hole |
| Voltage Rating | 300V |
| Wire Range | 22-16AWG |
