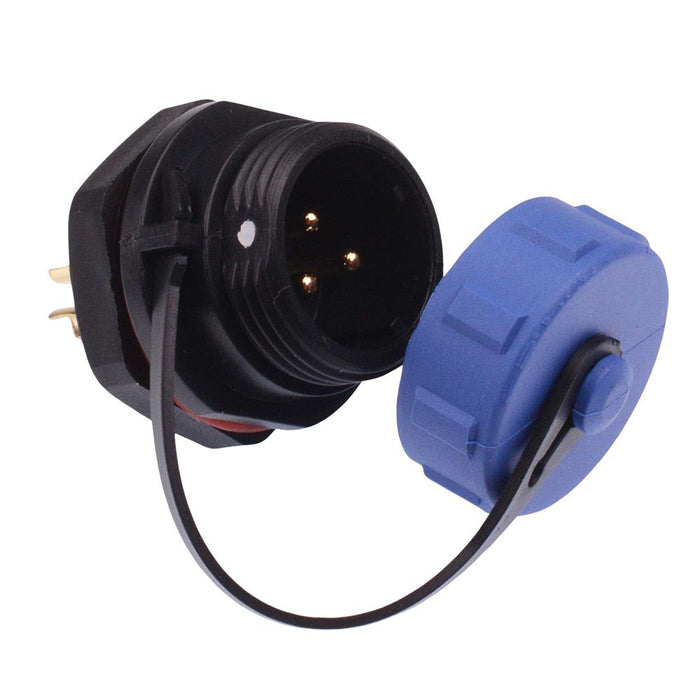

3 Pin Waterproof Male Socket Panel Mount Connector IP68

SKU 482013

MPN: 482013

Availability:
201 in stock
Original price £2.26 - Original price £2.26
Original price
£2.26 Inc VAT
£2.26 - £2.26
Current price £2.26 Inc VAT
3 way male socket featuring IP68 protection rating suitable for panel mount applications requiring a waterproof and rugged connector.

  • Outer cable diameter: 4.5-6mm
  • Protection level: IP68
  • Rating: 13A 250V
  • Solder termination
  • Rated for 500 mating cycles
  • Dimensions: 24.4 x 20mm (length x diameter)
  • Specification
    Back order lead time 30 Days
    Contact material Gold Plated Brass
    Current rating 13A
    Gender Male
    Housing material PA66
    Mounting type Panel Mount
    Number of ways 3
    Operating temperature -25°C to +80°C
    Protection level IP68
    Termination method Solder
    Thread size W13
    Voltage rating 250V
    Wire range 4-6.5mm Diameter
