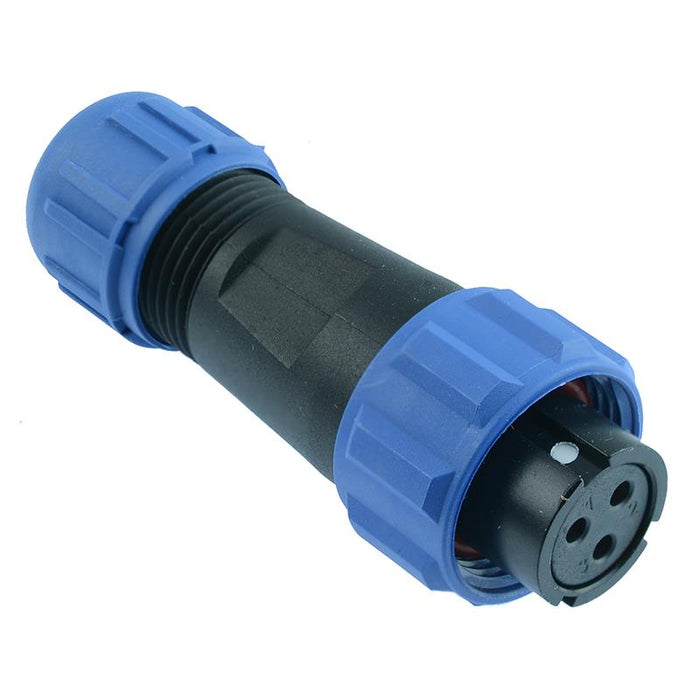

3 Pin Waterproof Female Plug Cable Connector IP68
SKU 482006
MPN: 482006
Availability:
66 in stock
Original price
£3.26
-
Original price
£3.26
Original price
£3.26
£3.26
-
£3.26
Current price
£3.26
3 way female plug featuring IP68 protection rating suitable for applications requiring a waterproof and rugged connector.
Outer cable diameter: 4.5-6mm Protection level: IP68 Rating: 13A 250V Solder termination Rated for 500 mating cycles Dimensions: 48 x 18.8mm (length x diameter)
Specification
| Back Order Lead Time | 30 Days |
| Contact Material | Gold Plated Brass |
| Current Rating | 13A |
| Gender | Female |
| Housing Material | PA66 |
| Mounting Type | Cable Mount |
| Number of Ways | 3 |
| Operating Temperature | -25°C to +80°C |
| Protection Level | IP68 |
| Termination Method | Solder |
| Thread Size | W13 |
| Voltage Rating | 250V |
| Wire Range | 4-6.5mm Diameter |
