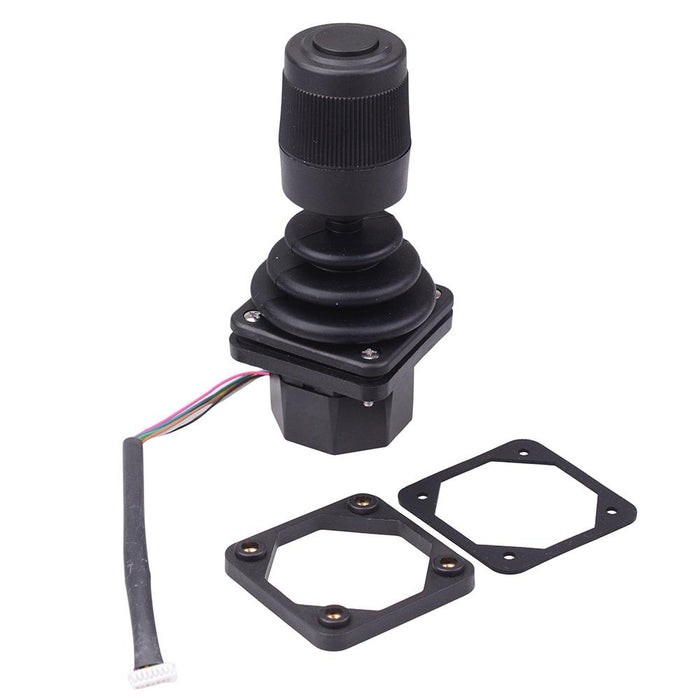

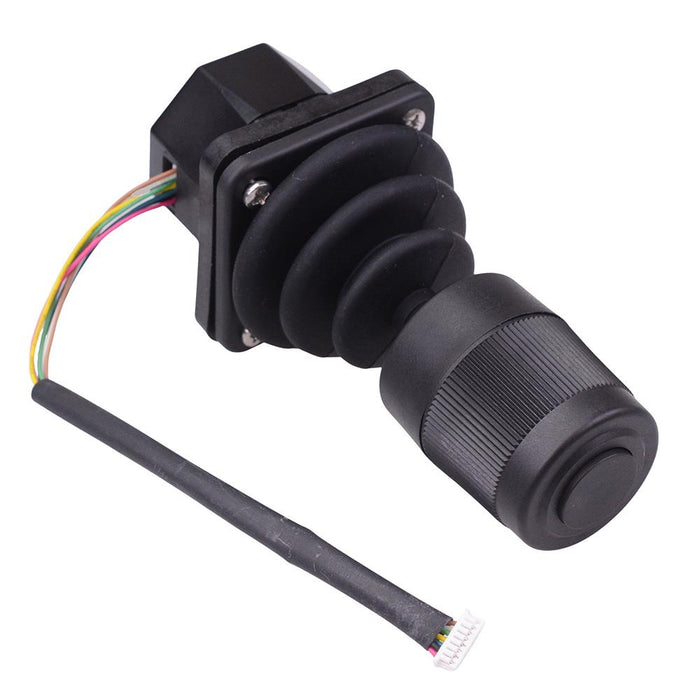

3 Axis Hall Effect Joystick 5VDC

3-axis joystick featuring X/Y and Z(rotary) movement with a push button mounted on the top of the handle. The joystick features a low profile design utilising potentiometric technology providing a very long operating life. The joystick features 150mm tail leads and is terminated with a A1251 8 pin connector. Common applications include CCTV and camera control requiring full movement, zoom and a clickable button.

3 axis

Rubber boot mounting bezel

Low profile mounting depth

Spring centering

150mm leads with A1251 8 pin connector

Potentiometer output: 0-5VDC

Panel cut-out: 41mm

Mounting screws pitch: 35.56 x 35.56mm

Height above panel: 84.9mm

Dimensions: 115.8 x 48.5 x 48.5mm (height x width x length)

Supplied with mounting gasket and screws
