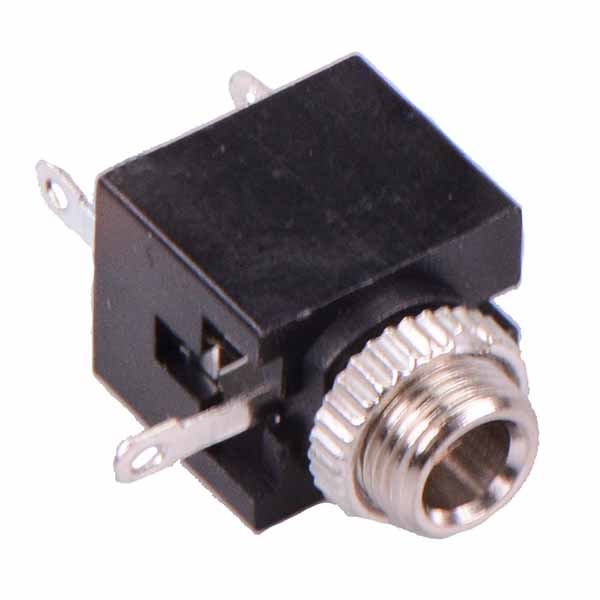

3.5mm Mono Miniature Jack Socket

3.5mm Mono Miniature Jack Socket

by Switch Electronics
SKU 482510

MPN: 482510

Availability:
Out of stock
Sold out
£0.26 - £0.26
£0.26
£0.26
£0.26 - £0.26
£0.26
Panel mounting 3.5mm mono socket suitable for a range of audio applications.

  • Rated voltage: 30VDC
  • Rated current: 0.5A
  • Housing material: PBT
  • Panel cut-out: 6mm
  • Maximum panel thickness: 2mm
    • Download Product Data Sheet PDF
    Specification
    Back Order Lead Time 150
    Colour Black
    Contact Material Brass
    Current Rating 0.5A
    Gender Female
    Housing Material PBT
    MOQ 10
    Mounting Type Panel
    Operating Temperature -30°C to +70°C
    Panel Cut Out 6mm
    Termination Method Solder
    Voltage Rating 30VDC
