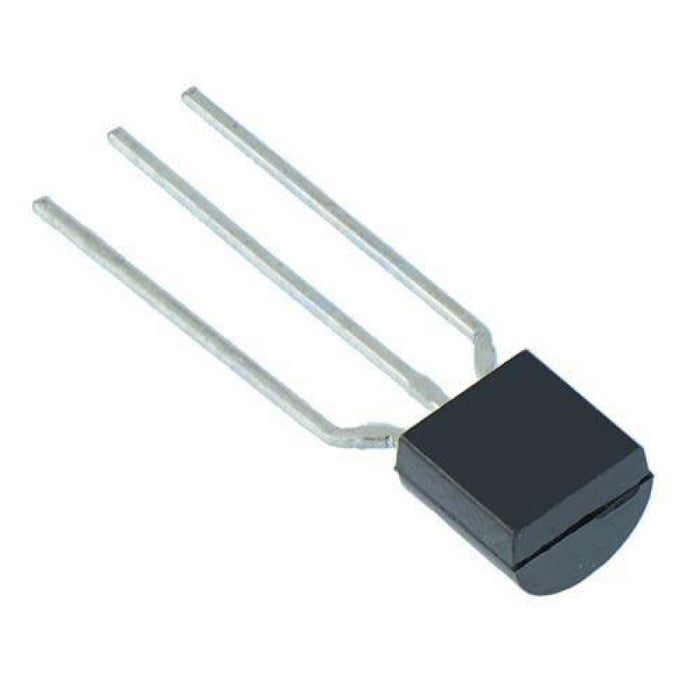

2N5551 Bipolar NPN Transistor 160V 600mA TO92

by Diotec
SKU 480708

MPN: 2N5551

Availability:
755 in stock
Original price £0.14 - Original price £0.14
Original price
£0.14 Inc VAT
£0.14 - £0.14
Current price £0.14 Inc VAT
The 2N5551 is a general purpose NPN transistor housed in a TO92 package, suitable for signal processing, switching and amplication applications.

  • Collector emitter voltage: 160V
  • Collector base voltage: 180V
  • Emitter base voltage: 6V
  • Collector current: 600mA
  • Power dissipation: 625mW
  • Specification
    Back order lead time 5 Days
    Collector base voltage 180V
    Collector current 600mA
    Collector emitter voltage 160V
    Maximum operating temperature 150°C
    Moq 5
    Package TO92
    Power dissipation 625mW
    Type NPN
