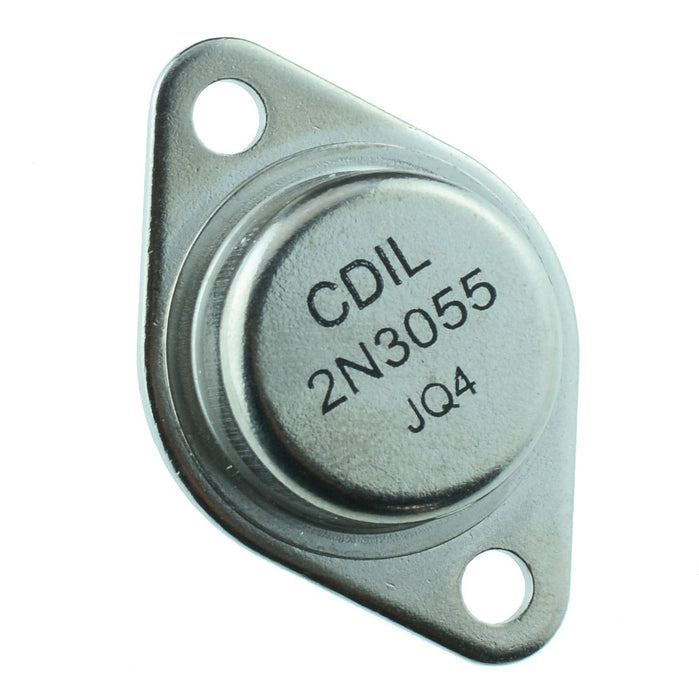

2N3055 Bipolar NPN Transistor 15A 60V

by CDIL
SKU 552330

MPN: T2N3055

Availability:
86 in stock
Original price £2.24 - Original price £2.24
Original price
£2.24 Inc VAT
£2.24 - £2.24
Current price £2.24 Inc VAT
2N3055 is a high power transistor with NPN polarity with 115W power dissipation, housed in a TO-3 package designed for general purpose switching and amplifier applications.

  • Collector emitter voltage: 60V
  • Collector current: 15A
  • Power dissipation: 115W
  • Frequency: 2.5MHz
  • Specification
    Back order lead time 5 Days
    Collector base voltage 100V
    Collector current 15A
    Collector emitter voltage 60V
    Dc current gain 20-70
    Maximum operating temperature 200°C
    Package TO3
    Power dissipation 115W
    Transistion frequency 2.5MHz
    Type NPN
