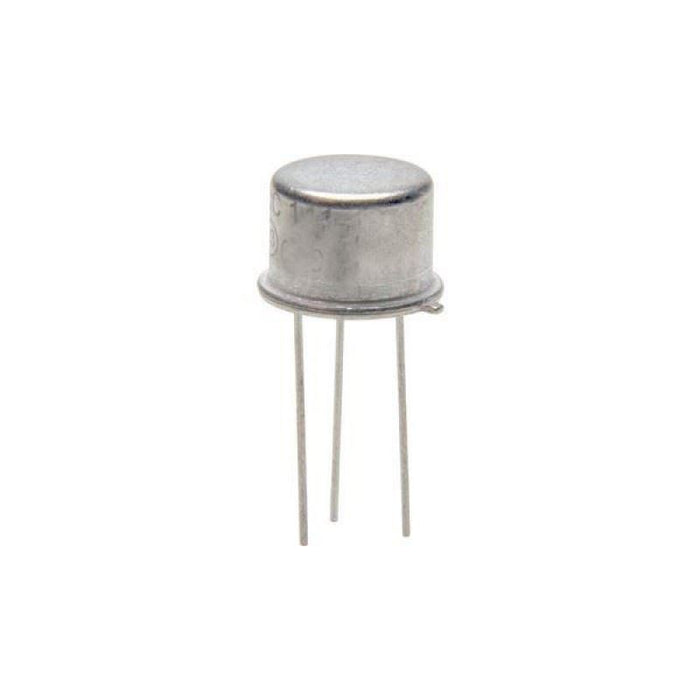

2N2219A Bipolar NPN 40V Transistor TO39

by CDIL
SKU 480926

MPN: 2N2219A

Availability:
48 in stock
Original price £0.80 - Original price £0.80
Original price
£0.80 Inc VAT
£0.80 - £0.80
Current price £0.80 Inc VAT
The 2N2219A is a general purpose medium power bipolar transistor featuring a planar construction and housed in a TO92 package, suitable for low noise general purpose audio applications.

  • NPN polarity
  • Collector emitter voltage: 40V
  • Collector base voltage: 75V
  • Collector current: 0.8A
  • Power: 800mW
  • Transition frequency: 300MHz
  • TO39 package
  • Specification
    Back order lead time 5 Days
    Collector base voltage 75V
    Collector current 800mA
    Collector emitter voltage 40V
    Dc current gain 100-300
    Maximum operating temperature 200°C
    Mounting type Through Hole
    Package TO39
    Power dissipation 0.8/3W
    Transistion frequency 300MHz
    Type NPN
