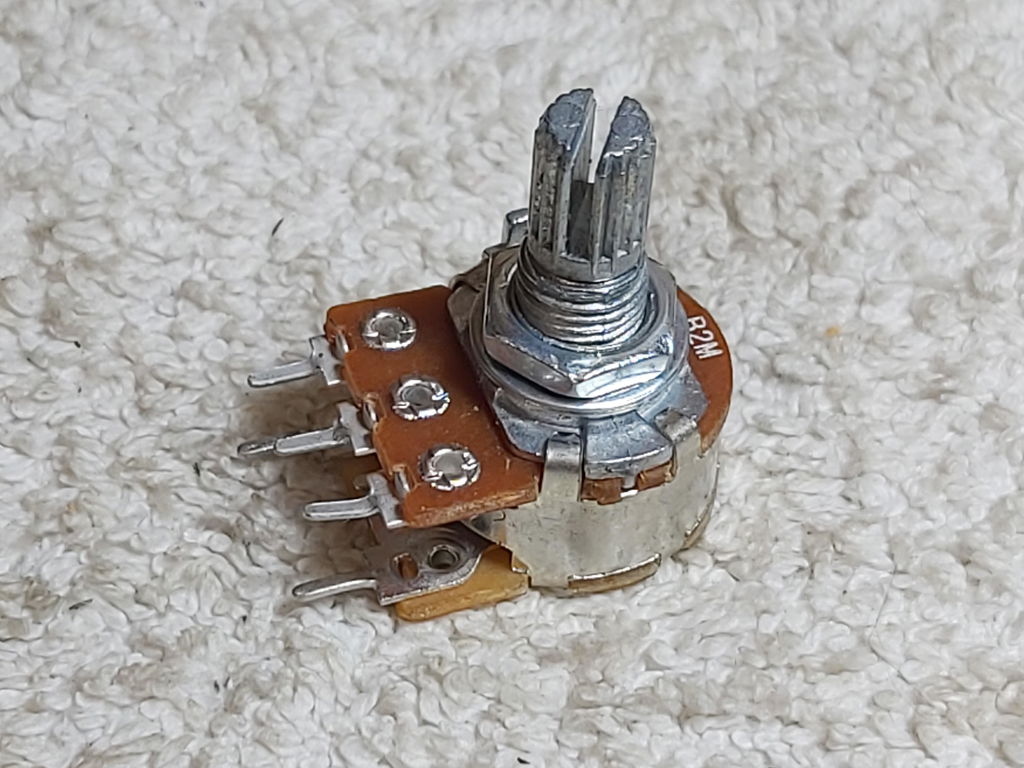

2M Linear 16mm Potentiometer with Switch
SKU 483342
MPN: 483342
Availability:
237 in stock
Original price
£0.44
-
Original price
£0.44
Original price
£0.44
Inc VAT
£0.44
-
£0.44
Current price
£0.44
Inc VAT
2M linear 16mm potentiometers featuring a splined 6mm shaft and switch suitable for PCB mounting.
2MM linear Mono with switch Standard 16mm diameter size 20% tolerance Panel cut-out: 7mm 5mm pitch 15mm shaft length
Specification
| Back order lead time | 45 Days |
| Dimensions | 17mm Diameter |
| Maximum voltage | 200V |
| Mounting hole diameter | 7mm |
| Mounting type | Panel Mount |
| Operating temperature | -25°C to +70°C |
| Pitch | 5mm |
| Power rating | 0.125W |
| Resistance | 2MΩ |
| Shaft diameter | 6mm |
| Taper | Linear |
| Termination type | Pin |
| Tolerance | ±20% |
| Total rotation | 300° |
