2K 16mm Logarithmic Splined Potentiometer
SKU 484819
MPN: 484819
Availability:
992 in stock
Original price
£0.47
-
Original price
£0.47
Original price
£0.47
£0.47
-
£0.47
Current price
£0.47

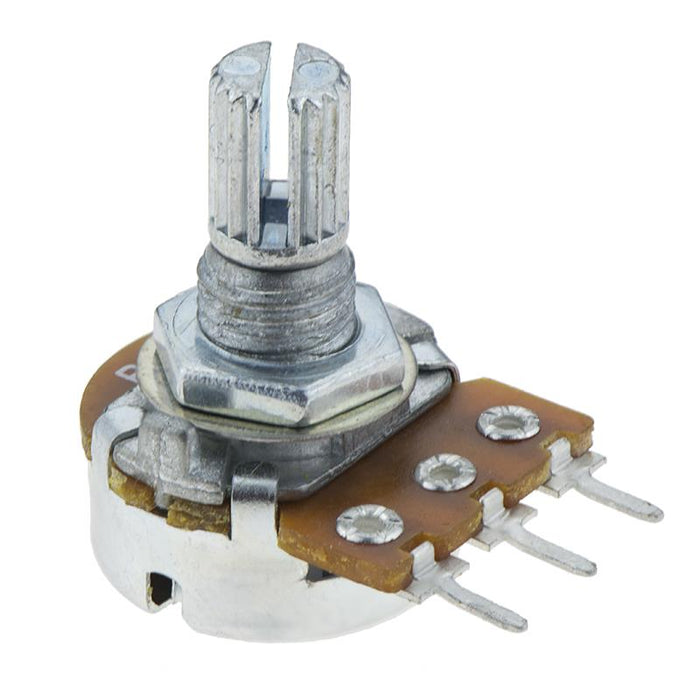

2K logarithmic 16mm potentiometer with a splined 6mm shaft suitable for PCB mounting.
Standard 16mm body diameter PCB contacts 20% tolerance Panel cut-out: 7mm 5mm pitch 15mm shaft length
Specification
| Back Order Lead Time | 45 Days |
| Dimensions | 17mm Diameter |
| Maximum Voltage | 150V |
| Mounting Hole Diameter | 7mm |
| Mounting Type | Panel Mount |
| Operating Temperature | -25°C to +70°C |
| Pitch | 5mm |
| Power Rating | 0.063W |
| Resistance | 2KΩ |
| Shaft Diameter | 6mm |
| Taper | Logarithmic |
| Termination Type | Pin |
| Tolerance | ±20% |
| Total Rotation | 300° |
