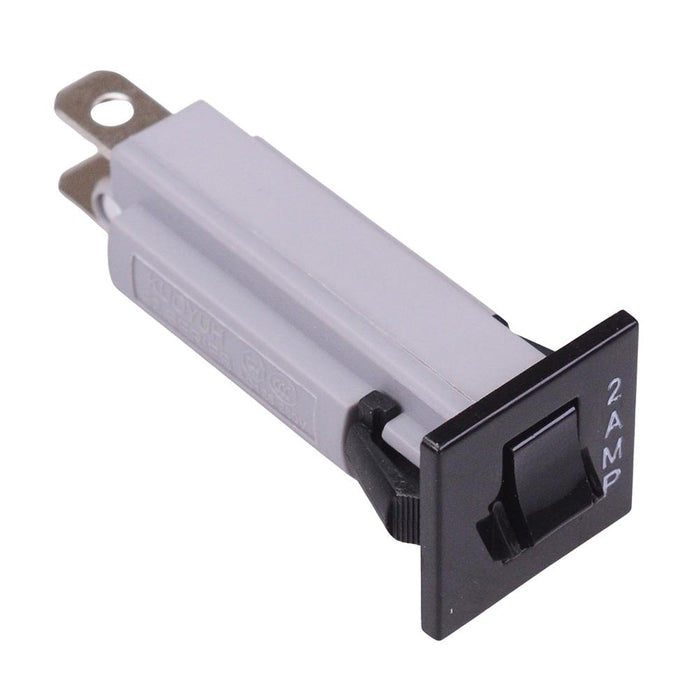

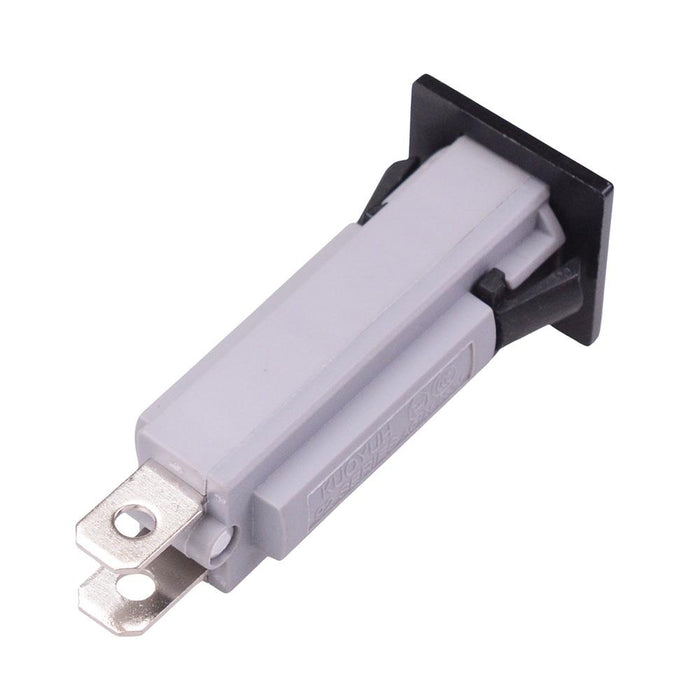

2A Push to Reset Panel Mount Thermal Circuit Breaker 50VDC
SKU 492253
MPN: 92X-0200-BN6N
Availability:
Only 1 left!
Original price
£1.99
-
Original price
£1.99
Original price
£1.99
£1.99
£1.99
-
£1.99
Current price
£1.99
2A panel mount thermal circuit breaker featuring a manual push reset and quick connect terminals. The circuit breaker requires a 15.8mm panel cut-out and is suitable for a wide range of AC and DC circuit protection applications.
Manual push to reset Voltage rating: 250VAC, 50VDC Panel cut-out: 15.8mm 6.3mm quick connect terminals Dimensions: 53.1 x 19.0 x 19.0mm (height x length x width)
Specification
| Back Order Lead Time | 150 |
| Current Rating | 2A |
| Interrupting Capacity | 1000A |
| MOQ | 1 |
| Mounting Style | Panel |
| Operating Temperature | -10°C to +60°C |
| Panel Cut Out | 15.8mm |
| Voltage Rating | 250VAC / 50VDC |
