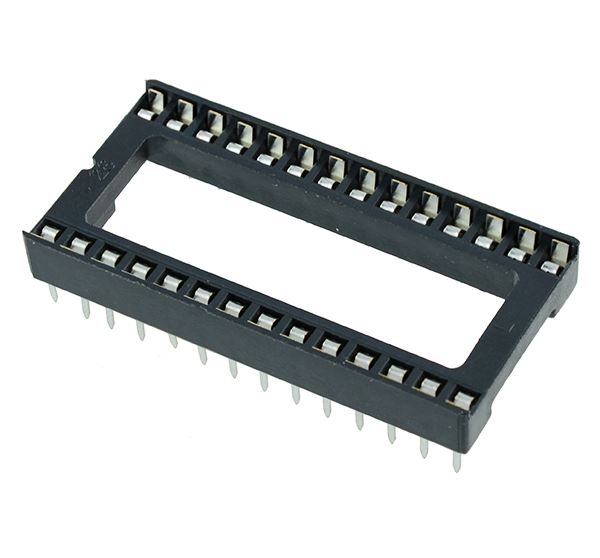

28-Pin DIP IC Socket 15.24mm
SKU 222011
MPN: 222011
Availability:
220 in stock
Original price
£0.36
-
Original price
£0.36
Original price
£0.36
Inc VAT
£0.36
-
£0.36
Current price
£0.36
Inc VAT
Dual inline sockets with a thermoplastic body and tin plated phosphor bronze contacts. The sockets feature screw machined pins and can be mounted end to end to form one continuos run.
PCB hole: 0.6mm Height (above PCB): 4.8mm 2.54mm pitch Current rating: 1A Dimensions: Dimensions: 35.56 x 17.78 x 4.8mm (Length x Width x Height)
Specification
| Back order lead time | 30 Days |
| Contact material | Tin Plated Phosphor Bronze |
| Current rating | 1A |
| Housing material | PBT |
| Moq | 5 |
| Mounting type | PCB Mount |
| Number of pins | 28 |
| Number of ways | 28 |
| Operating temperature | -45°C to +105°C |
| Pitch | 15.24mm |
| Termination method | Solder |
