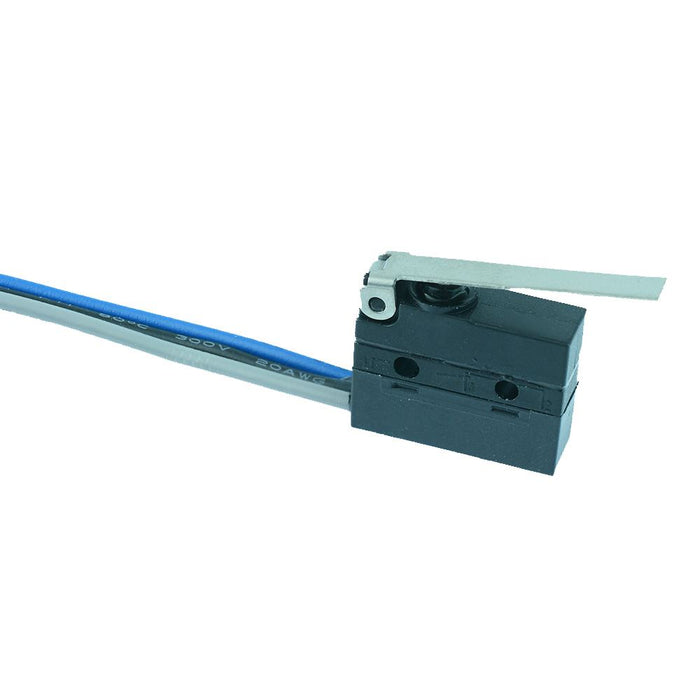

26mm Lever Waterproof Prewired Microswitch SPDT 3A IP67

SKU 481699

MPN: 481699

Availability:
179 in stock
Original price £2.72 - Original price £2.72
Original price
£2.72 Inc VAT
£2.72 - £2.72
Current price £2.72 Inc VAT
Miniature microswitch featuring a 26mm lever actuator, housed in a waterproof compact package capable of switching up to 3A. The switch features 500mm flying leads and is suitable for domestic and industrial applications.

  • 25.8mm lever actuator
  • Rating: 3A 250VAC / 48VDC
  • NO / NC contacts
  • 500mm 20AWG flying leads
  • Operating force: 85gf max
  • Release force: 13gf min
  • Pre-travel: 6.3mm max
  • Over-travel 1mm min
  • Differential travel: 1mm max
  • Body dimensions: 19.9 x 6.4 x 9.3mm (Length x Width x Height)
  • Specification
    Back order lead time 45 Days
    Contact configuration SPDT
    Contact rating 3A 250VAC
    Current rating 3A
    Electrical life 100,000 Cycles
    Number of positions 2
    Operating force 85gf Max
    Protection level IP67
    Release force 13gf Min
    Terminal type Leads
    Voltage rating 250VAC
