2604-1103 WAGO 3-Way 5mm Push-In PCB Terminal Block 4mm² 32A

by Wago
SKU 489346

MPN: 2604-1103

Availability:
115 in stock
Original price £2.94 - Original price £2.94
Original price
£2.94 Inc VAT
£2.94 - £2.94
Current price £2.94 Inc VAT

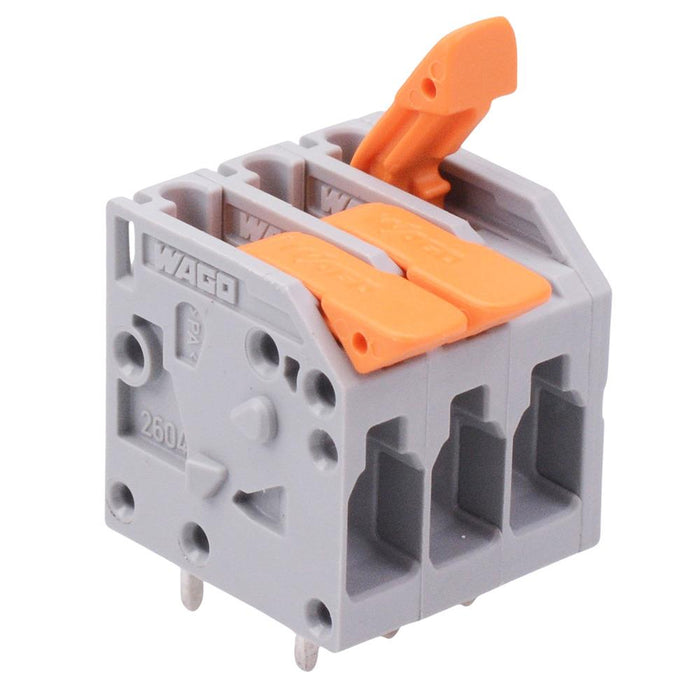

The 2604-1103 is a 3 pole terminal block by WAGO featuring cage clamp levers and push-in termination for solid and stranded cables. The terminal block features 5mm pin spacing and features a tool free intuitive design. The clamping units can be held open simultaneously, simplyfying the connection of multi-core cables.

  • Current rating: 32A
  • Voltage rating: 630V
  • Wire size: 0.2 to 4mm² (24-12AWG)
  • Wire strip length: 11-13mm
  • Pin spacing: 5mm
  • Width: 17.4mm
  • Height: 20.7mm
  • Height from the surface: 16.7mm
  • Depth: 19.2mm
  • Contact material: tin plated copper
  • Housing material: PA66
  • Specification
    Back order lead time 5 Days
    Colour Grey
    Contact material Tin Plated Copper
    Current rating 32A
    Housing material PA66
    Mounting type PCB Mount
    Number of ways 2
    Operating temperature -60°C to +105°C
    Pitch 5.00mm
    Termination method Push-In
    Voltage rating 630V
    Wire range 0.2-4mm²
