2604-1102 WAGO 2-Way 5mm Push-In PCB Terminal Block 4mm² 32A
by Wago
SKU 489345
MPN: 2604-1102
Availability:
195 in stock
Original price
£2.02
-
Original price
£2.02
Original price
£2.02
Inc VAT
£2.02
-
£2.02
Current price
£2.02
Inc VAT

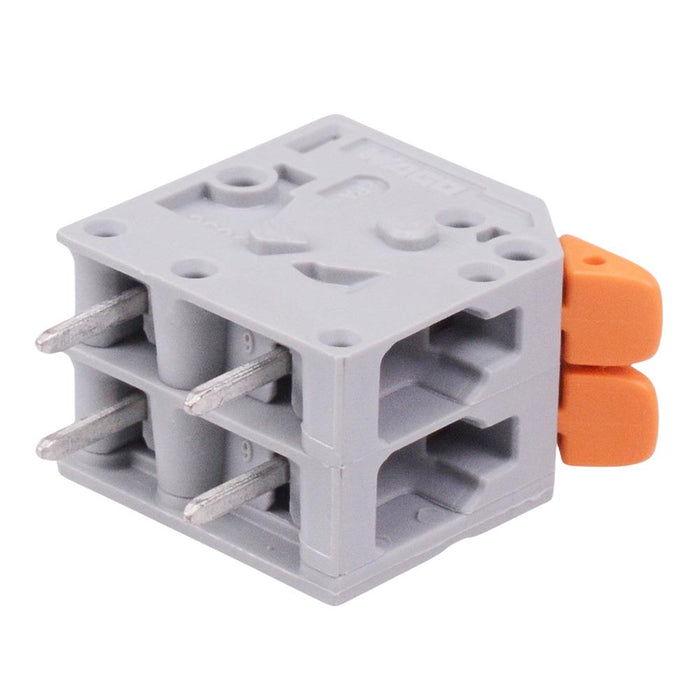

The 2604-1102 is a 2 pole terminal block by WAGO featuring cage clamp levers and push-in termination for solid and stranded cables. The terminal block features 5mm pin spacing and features a tool free intuitive design. The clamping units can be held open simultaneously, simplyfying the connection of multi-core cables.
Current rating: 32A Voltage rating: 630V Wire size: 0.2 to 4mm² (24-12AWG) Wire strip length: 11-13mm Pin spacing: 5mm Width: 12.4mm Height: 20.7mm Height from the surface: 16.7mm Depth: 19.2mm Contact material: tin plated copper Housing material: PA66
Specification
| Back order lead time | 5 Days |
| Colour | Grey |
| Contact material | Tin Plated Copper |
| Current rating | 32A |
| Housing material | PA66 |
| Mounting type | PCB Mount |
| Number of ways | 2 |
| Operating temperature | -60°C to +105°C |
| Pitch | 5.00mm |
| Termination method | Push-In |
| Voltage rating | 630V |
| Wire range | 0.2-4mm² |
