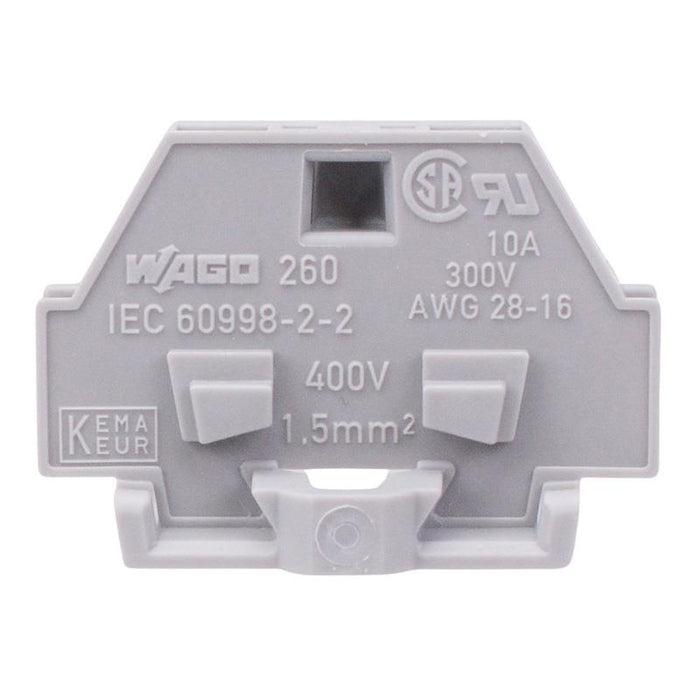

260-301 WAGO Grey 2-Way Screw Mount Terminal Block 1.5mm² 18A

by Wago
SKU 489404

MPN: 260-301

300 in stock
Original price £0.47 - Original price £0.47
Original price
£0.47 Inc VAT
£0.47 - £0.47
Current price £0.47 Inc VAT
The 260-301 is a grey 2 conductor terminal block by WAGO, featuring cage clamp technology compatible with both stranded and solid conductor cable. The terminal block accepts up to 1.5mm² cable and is suitable for screw mounting.

  • CAGE CLAMP® technology
  • Side entry wiring
  • Cable size: 0.08mm² - 1.5mm² / 28AWG - 16AWG
  • Cable strip length: 8mm - 9mm
  • Rated surge voltage: 6kV
  • Nominal voltage: 400V
  • Current rating: 18A
  • Fixing hole: 3.2mm
  • Width: 5.2mm
  • Height from surface: 17.1mm
  • Depth: 25.1mm
  • Compatible end plate: 260-361
  • Specification
    Back order lead time 5 Days
    Colour Grey
    Contact material Copper
    Current rating 18A
    Housing material PA66
    Mounting type Screw Mount
    Number of ways 2
    Termination method Push-In
    Voltage rating 400V
    Wire range 0.08-1.5mm²
