26 Way D Sub Connector Female Socket 3 Rows

SKU 489578

MPN: RE-C-214-26-F-L

Availability:
295 in stock
Original price £0.84 - Original price £0.84
Original price
£0.84
£0.84 - £0.84
Current price £0.84

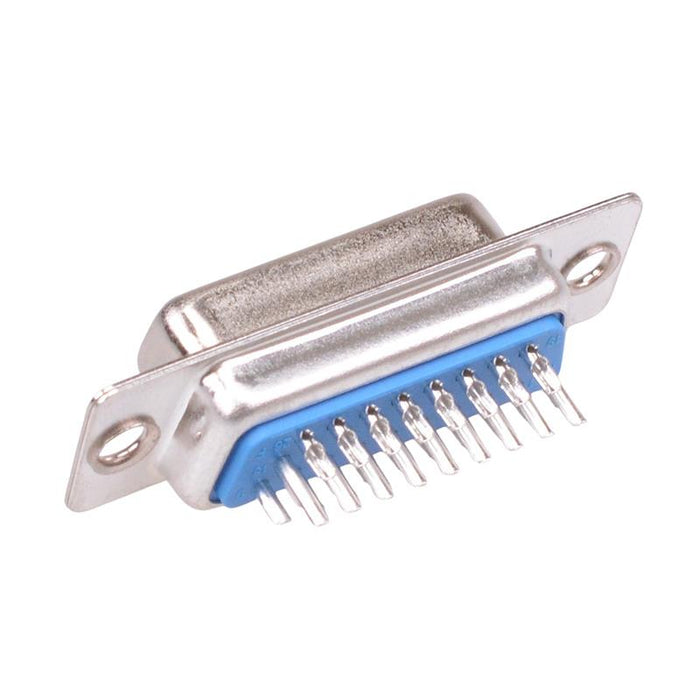

Female D sub connector featuring 26 ways compromised in 3 rows, suitable for panel mounting. The connector features 33.3mm mounting hole pitch and solder termination.

  • 26 ways
  • Straight orientation
  • Solder termination
  • Fixing centres: 33.3mm apart
  • Width: 39.2mm
  • Housing material: PBT+30% glass fiber (UL94V-0)
  • Contact material: gold plated brass
  • Mounting hole diameter: 3.2mm
  • Specification
    Back Order Lead Time 120 Days
    Contact Material Gold Plated Brass
    Current Rating 5A
    Gender Female
    Housing Material PBT
    MOQ 1
    Mounting Hole Pitch 33.30mm
    Mounting Type Panel
    Number of Ways 26
    Operating Temperature -55°C to +105°C
    Termination Method Solder
    Request a quote
