25K Linear Mono PC16 Potentiometer Piher

by Piher
SKU 552355

MPN: 6PMI-25K

Availability:
37 in stock
Original price £1.89 - Original price £1.89
Original price
£1.89 Inc VAT
£1.89 - £1.89
Current price £1.89 Inc VAT

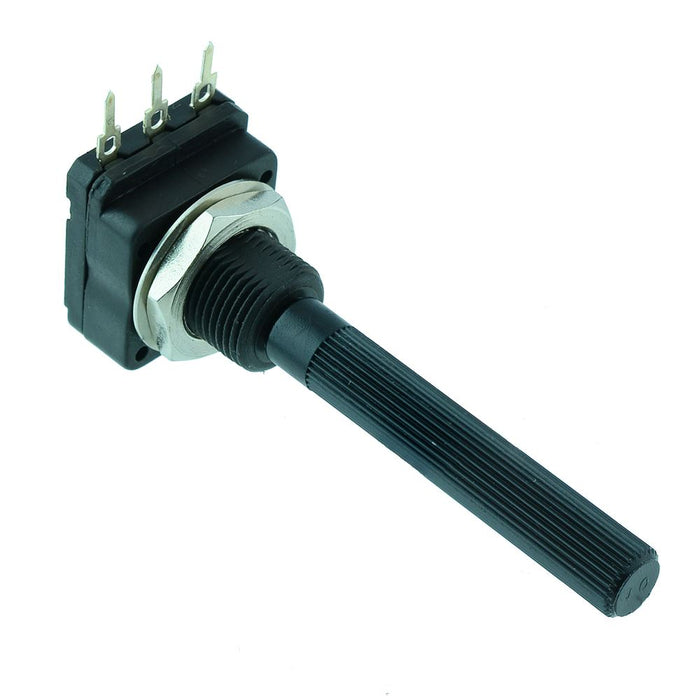

Enclosed 25K linear mono potentiometer featuring a 6mm diameter shaft and self-extinguishing plastic case, suitable for PCB applications.

  • 6mm diameter splined shaft
  • 31.5mm shaft length
  • ±20% tolerance
  • 300° mechanical rotation
  • Carbon resistive element
  • Dust proof enclosure
  • Self extinguishable material UL94V-0
  • Piher PC16 series
  • Specification
    Back order lead time 5 Days
    Maximum voltage 250VDC
    Mounting hole diameter 10mm
    Mounting type Panel Mount
    Operating temperature -25°C to +70°C
    Pitch 5mm
    Power rating 0.2W
    Resistance 25KΩ
    Shaft diameter 6mm
    Taper Linear
    Termination type Pin
    Tolerance ±20%
    Total rotation 300°
