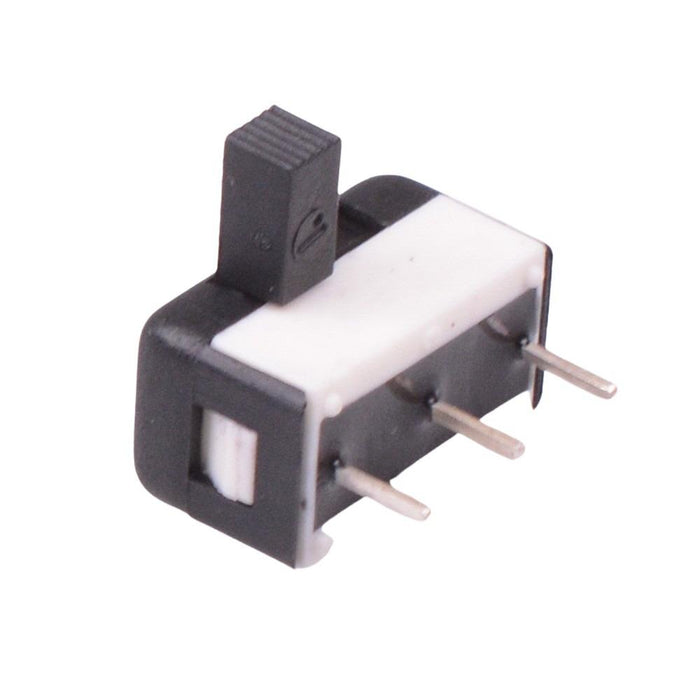

25536NA-6 On-On Professional Horizontal PCB Slide Switch SPDT APEM
by APEM
SKU 489809
MPN: 25536NA-6
Availability:
860 in stock
Original price
£3.46
-
Original price
£3.46
Original price
£3.46
Inc VAT
£3.46
-
£3.46
Current price
£3.46
Inc VAT
The 25536NA-6 is a professional grade slide switch manufactured by APEM, featuring SPDT contacts and approved to UL1054. The switch is suitable for wave soldering and a wide range of PCB mounting applications.
SPDT contacts On-On operation 5.08mm terminal spacing Silver contacts 6.0mm long side actuator Rating: 100mA 30VDC
Specification
| Actuation | Latching |
| Contact configuration | SPDT |
| Contact material | Silver |
| Contact rating | 1A 30VDC |
| Current rating | 1A |
| Electrical life | 10,000 Cycles |
| Material | PBT |
| Moq | 1 |
| Mounting style | PCB |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating temperature | -40°C to +85°C |
| Pitch | 2.54mm |
| Product series | 25000N |
| Switch operation | On-On |
| Terminal type | PCB |
| Voltage rating | 30VDC |
