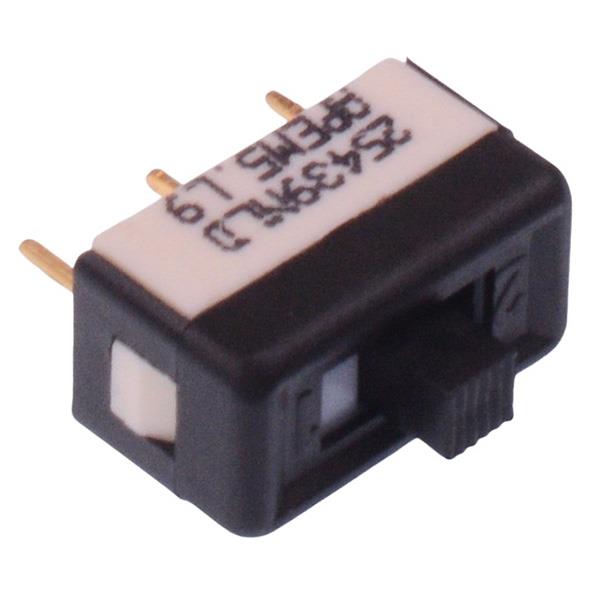

25439NLDH APEM On-Off-On Professional PCB Slide Switch High Actuator SPDT

by APEM
SKU 487363

MPN: 25439NLDH

Availability:
468 in stock
Original price £3.49 - Original price £3.49
Original price
£3.49
£3.49 - £3.49
Current price £3.49
The 25439NLDH is a professional grade slide switch manufactured by APEM, featuring SPDT contacts and approved to UL1054. The switch is suitable for wave soldering and a wide range of PCB mounting applications.

  • SPDT contacts
  • On-Off-On operation
  • 5.08mm terminal spacing
  • Gold plated brass contacts
  • 2.8mm high actuator
  • Rating: 100mA 30VDC
  • Specification
    Actuation Latching
    Back Order Lead Time 10 Days
    Contact Configuration SPDT
    Contact Material Gold Plated Brass
    Contact Rating 0.1A 30VDC
    Current Rating 0.1A
    Electrical Life 10,000 Cycles
    Material PBT
    Mounting Style PCB
    Number of Poles 1
    Number of Positions 3
    Operating Temperature -40°C to +85°C
    Pitch 5.08mm
    Product Series 25000N
    Switch Operation On-Off-On
    Terminal Type PCB
    Voltage Rating 30VDC
