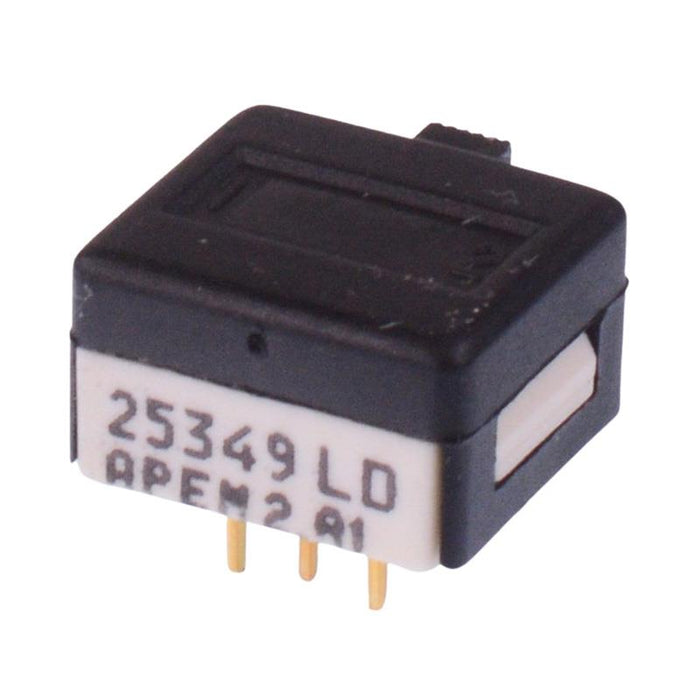

25349NLD APEM On-Off-On Professional Horizontal PCB Slide Switch DPDT

by APEM
SKU 487785

MPN: 25349NLD

Availability:
50 in stock
Original price £4.39 - Original price £4.39
Original price
£4.39 Inc VAT
£4.39 - £4.39
Current price £4.39 Inc VAT
The 25349NLD is a professional grade slide horizontal switch manufactured by APEM, featuring DPDT contacts and approved to UL1054. The switch is suitable for wave soldering and a wide range of PCB mounting applications.

  • DPDT contacts
  • On-Off-On operation
  • 2.54mm terminal spacing
  • Gold plated brass contacts
  • 2.3mm long actuator
  • Rating: 100mA 30VDC
  • Specification
    Actuation Latching
    Back order lead time 10 Days
    Contact configuration DPDT
    Contact material Gold Plated Brass
    Contact rating 0.1A 30VDC
    Current rating 0.1A
    Electrical life 10,000 Cycles
    Material PBT
    Mounting style PCB
    Number of poles 2
    Number of positions 3
    Operating temperature -40°C to +85°C
    Pitch 2.54mm
    Product series 25000N
    Switch operation On-Off-On
    Terminal type PCB
    Voltage rating 30VDC
