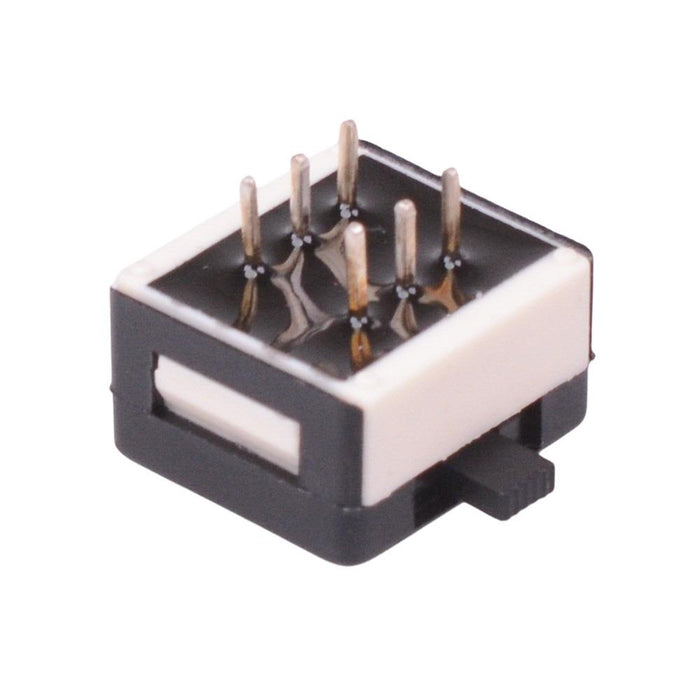

25349NA APEM On-Off-On Professional Horizontal PCB Slide Switch DPDT APEM
by APEM
SKU 489805
MPN: 25349NA
Availability:
Only 1 left!
Original price
£5.72
-
Original price
£5.72
Original price
£5.72
Inc VAT
£5.72
-
£5.72
Current price
£5.72
Inc VAT
The 25349NA is a professional grade slide switch manufactured by APEM, featuring DPDT contacts and approved to UL1054. The switch is suitable for wave soldering and a wide range of PCB mounting applications.
DPDT contacts On-Off-On operation 2.54mm terminal spacing Silver contacts 2.3mm side actuator Rating: 100mA 30VDC
Specification
| Actuation | Latching |
| Contact configuration | DPDT |
| Contact material | Silver |
| Contact rating | 1A 30VDC |
| Current rating | 1A |
| Electrical life | 10,000 Cycles |
| Material | PBT |
| Moq | 1 |
| Mounting style | PCB |
| Number of poles | 2 |
| Number of positions | 3 |
| Operating temperature | -40°C to +85°C |
| Pitch | 5.08mm |
| Product series | 25000N |
| Switch operation | On-Off-On |
| Terminal type | PCB |
| Voltage rating | 30VDC |
