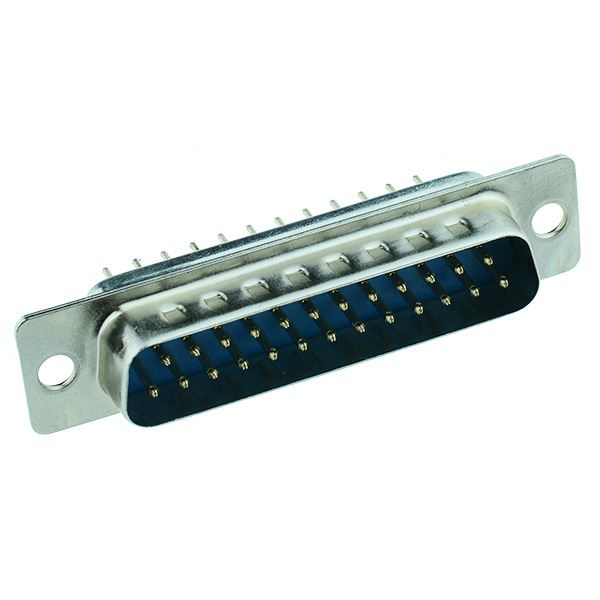

25-Way Male PCB D Plug Connector

SKU 480202

MPN: 480202

Availability:
Only 2 left!
Original price £0.66 - Original price £0.66
Original price
£0.66 Inc VAT
£0.66 - £0.66
Current price £0.66 Inc VAT
Straight D plug with 25 ways suitable for PCB mounting. The connector features a 2.77mm pitch and solder termination.

  • 25 ways
  • Straight orientation
  • Fixing centres: 47.04mm
  • Width: 53.04mm
  • Housing material: PBT+30% glass fiber (UL94V-0)
  • Contact material: brass or phosphor bronze
  • Jack posts and PCB locating spigots
  • Specification
    Back order lead time 30 Days
    Contact material Gold Plated Brass
    Contact pitch 2.77mm
    Gender Male
    Housing material PBT
    Mounting hole pitch 47.04mm
    Mounting type PCB
    Number of ways 25
    Operating temperature -40°C to +105°C
    Termination method Solder
