24VAC 8A DPDT PCB Relay 40.52.8.024.0000

by Finder
SKU 485495

MPN: 40.52.8.024.0000

Availability:
40 in stock
Original price £10.24 - Original price £10.24
Original price
£10.24 Inc VAT
£10.24 - £10.24
Current price £10.24 Inc VAT

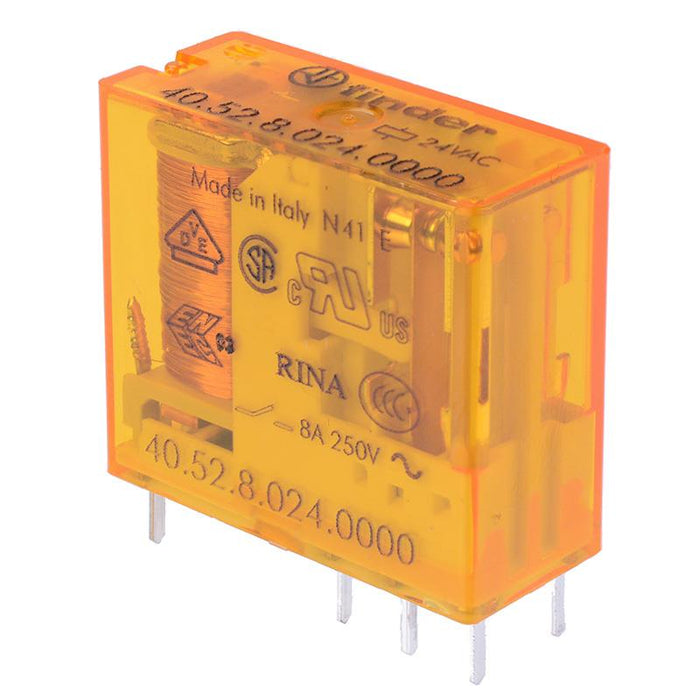

The 40.52.8.024.0000 is a 24VAC PCB or plug-in miniature relay from the Finder 40 series. The relay features DPDT contacts and a 8A contact rating. The relay meets UL, CSA and VDE standards, making them suitable for industrial, power management, automation & process control applications.

  • Contact configuration: DPDT
  • Coil voltage: 24VAC
  • Contact current: 8A
  • PCB mount or plug-in
  • Fits 95 series sockets
  • 5mm contact pin pitch
  • Dimensions: 29 x 12.4 x 25mm (length x width x height)
  • Specification
    Ambient temperature -40°C to +85°C
    Back order lead time 5 Days
    Coil resistance 320Ω
    Coil voltage 24VAC
    Contact arrangement DPDT
    Maximum switching current 8A
    Maximum switching voltage 400VAC
    Mounting type PCB
    Number of contacts 8
    Power consumption 1.2W
    Terminal type Through Hole
