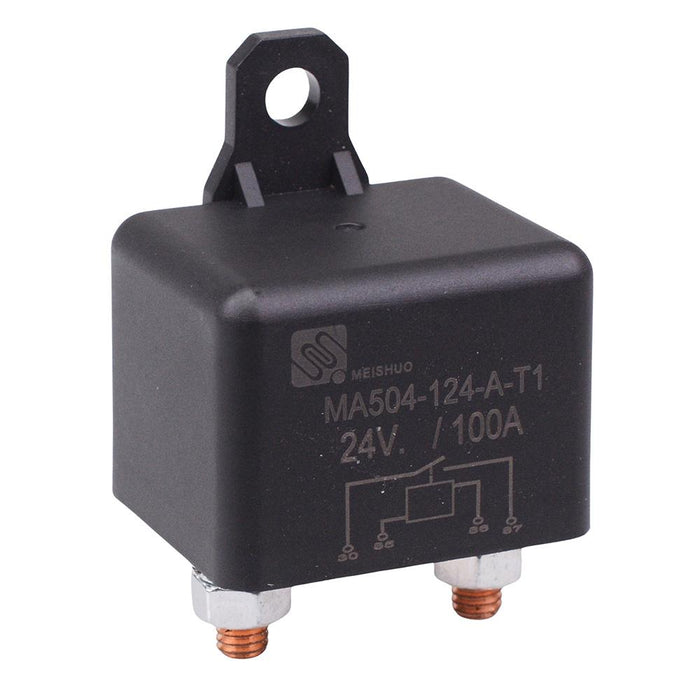

24V SPNO Heavy Duty Automotive Relay Bracket 100A MA504-124-A-T1
by Meishuo
SKU 490684
MPN: MA504-124-A-T1 100A
Availability:
300 in stock
Original price
£7.25
-
Original price
£7.25
Original price
£7.25
£7.25
£7.25
-
£7.25
Current price
£7.25

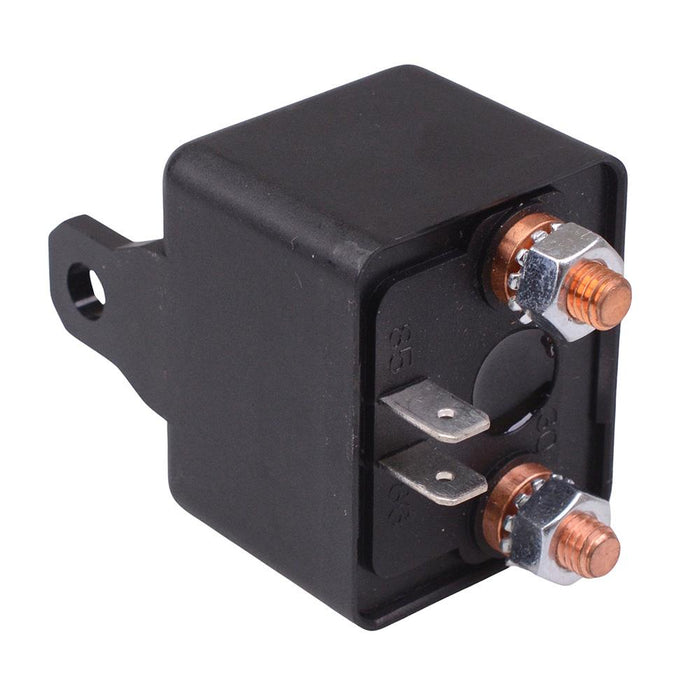

24V heavy duty automotive relay featuring SPNO contacts and 100A switching capability. The relay features 6.3mm quick connect and copper stud terminals, suitable for a wide range of automotive and marine applications.
Wide temperature range Switching current: 100A Coil voltage: 24VDC Coil power: 4.8W Contacts: SPNO Terminals: 6.3mm quick connect and copper stud Body dimensions: 44.8 x 37 x 33mm (width x depth x height)
Specification
| Ambient Temperature | -40°C to +75°C |
| Back Order Lead Time | 150 |
| Coil Resistance | 120Ω |
| Coil Voltage | 24VDC |
| Contact Arrangement | SPNO |
| Maximum Switching Current | 100A |
| MOQ | 1 |
| Mounting Type | Bracket |
| Number of Contacts | 4 |
| Power Consumption | 4.8W |
| Terminal Type | M6 Stud / Quick Connect |
