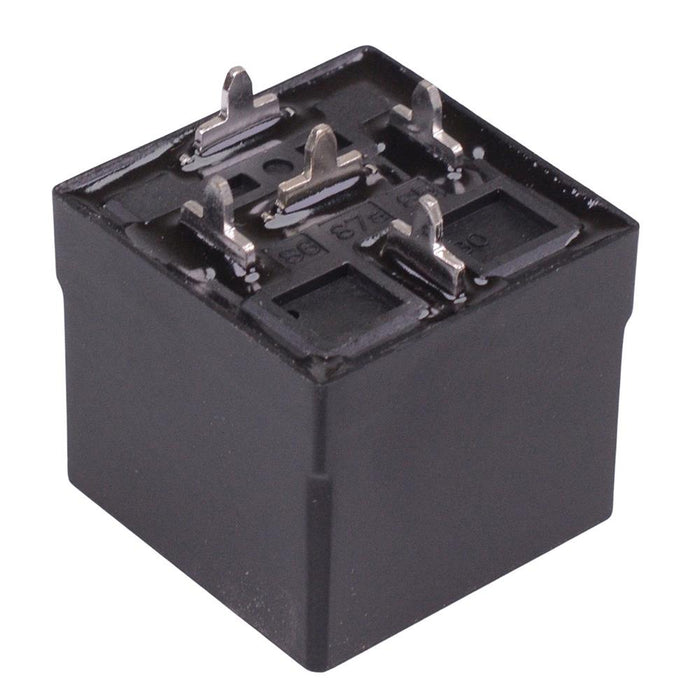

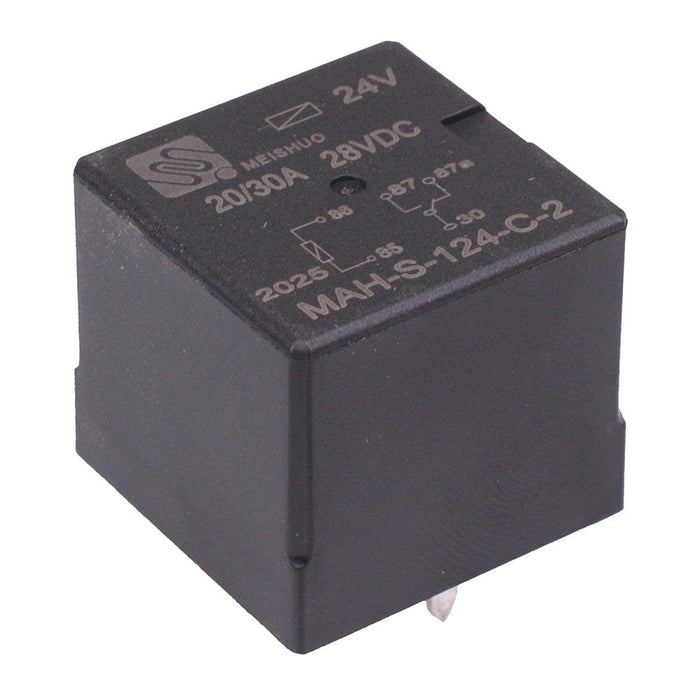

24V SPDT Mini Automotive PCB Relay 40A MAH-S-124-C-2
by Meishuo
SKU 490879
MPN: MAH-S-124-C-2
Availability:
500 in stock
Original price
£2.14
-
Original price
£2.14
Original price
£2.14
£2.24
£2.24
-
£2.24
Current price
£2.24
24V mini automotive relay featuring SPDT contacts and 40A continuous current rating. The relay features a sealed construction and PCB terminals, suitable for through hole mounting. The excellent reliability makes the relay suitable for a wide range of automotive applications and replacing alternative brand relays.
Excellent shock and vibration resistance Wide temperature range Bracket: without Maximum continuous current: 40A/30A (NO/NC) Contact rating: 28VDC 20/30A (NO/NC) Coil voltage: 24VDC Coil power: 1.7W Contacts: SPDT Terminals: PCB Body dimensions: 27.8 x 27.8 x 25.1mm
Specification
| Ambient Temperature | -40°C to +125°C |
| Back Order Lead Time | 120 Days |
| Coil Resistance | 2700Ω |
| Coil Voltage | 24VDC |
| Contact Arrangement | SPDT |
| Maximum Switching Current | 40A |
| Maximum Switching Voltage | 80VDC |
| MOQ | 1 |
| Mounting Type | PCB |
| Number of Contacts | 5 |
| Power Consumption | 1.9W |
| Terminal Type | Through Hole |
