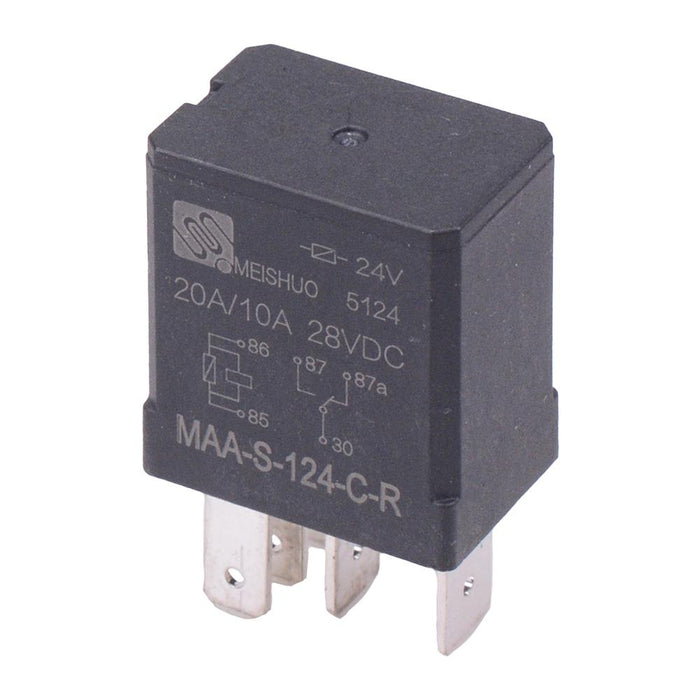

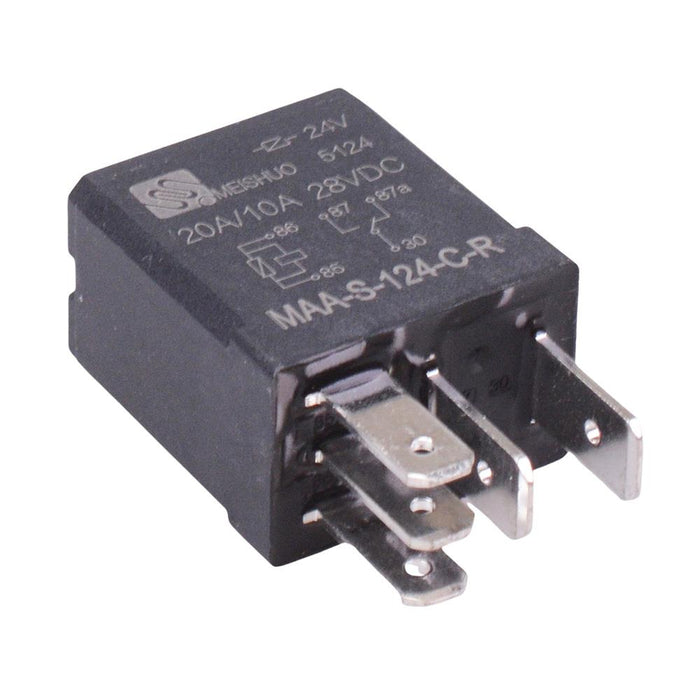

24V SPDT Micro Automotive Relay Resistor 35A MAA-S-124-C-R
by Meishuo
SKU 490664
MPN: MAA-S-124-C-R
Availability:
470 in stock
Original price
£1.94
-
Original price
£1.94
Original price
£1.94
£1.94
£1.94
-
£1.94
Current price
£1.94
24V micro automotive relay featuring SPDT contacts and resistor across the coil protecting your equipment against voltage spikes. The relay features a sealed construction and 6.3mm quick connect terminals, compatible with standard 5 pin sockets. The excellent reliability makes the relay suitable for a wide range of automotive applications and replacing alternative brand relays.
Excellent shock and vibration resistance Wide temperature range Maximum continuous current: 35A/20A (NO/NC) Contact rating: 28VDC 20A/10A (NO/NC) Coil voltage: 24VDC Coil power: 1.6W Contacts: SPDT Terminals: 6.3mm quick connect Body dimensions: 23.3 x 15 x 25mm
Specification
| Ambient Temperature | -40°C to +125°C |
| Back Order Lead Time | 120 Days |
| Coil Resistance | 360Ω |
| Coil Voltage | 24VDC |
| Contact Arrangement | SPDT |
| Maximum Switching Current | 35A |
| Maximum Switching Voltage | 40VDC |
| MOQ | 1 |
| Mounting Type | Plug In |
| Number of Contacts | 5 |
| Power Consumption | 1.8W |
| Terminal Type | Quick Connect |
