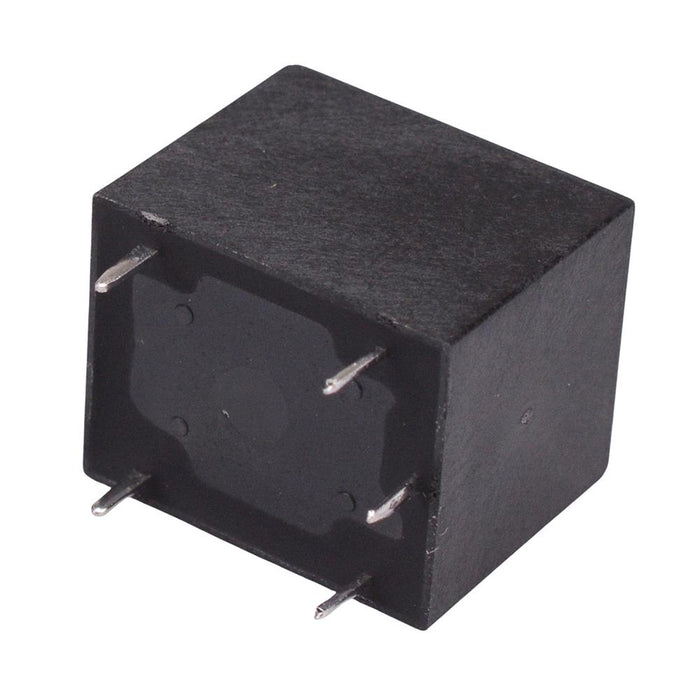

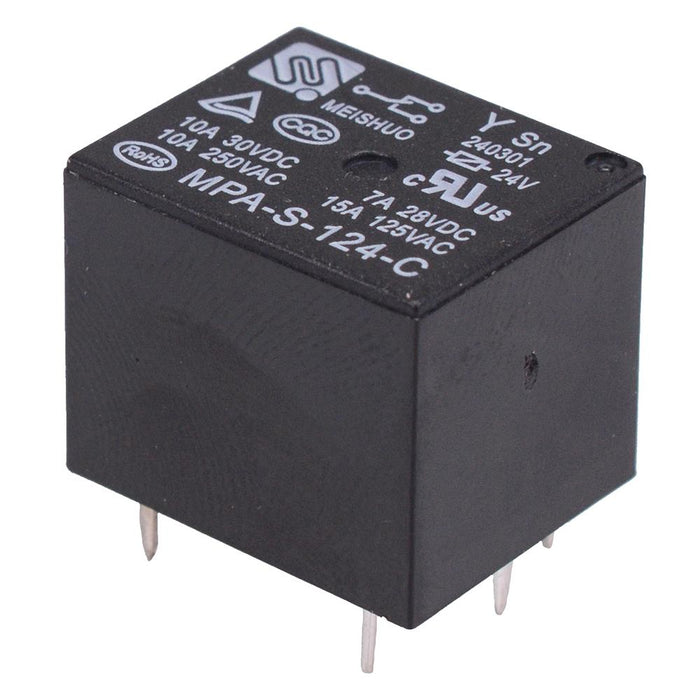

24V Mini Power PCB Relay SPDT 15A MPA-S-124-C

by Meishuo
SKU 552337

MPN: MPA-S-124-C

Availability:
450 in stock
Original price £0.62 - Original price £0.62
Original price
£0.62
£0.62 - £0.62
Current price £0.62
24V miniature cube power relay featuring SPDT contacts and 15A continuous current rating, suitable for a wide range of PCB mounting applications.

  • Compact and sealed construction
  • Coil rated voltage: 24VDC
  • Contacts: SPDT
  • Maximum switching current: 15A
  • Maximum switching voltage: 28VDC, 250VAC
  • Coil Power: 0.36W
  • Dimensions: 18.7 x 15 x 15.2mm
  • Specification
    Ambient Temperature -40°C to +105°C
    Back Order Lead Time 120 Days
    Coil Resistance 1600Ω
    Coil Voltage 24VDC
    Contact Arrangement SPDT
    Maximum Continuous Voltage 31.2VDC
    Maximum Switching Current 15A
    Maximum Switching Voltage 250VAC / 28VDC
    Mounting Type PCB
    Number of Contacts 5
    Power Consumption 0.36W
    Terminal Type Through Hole
