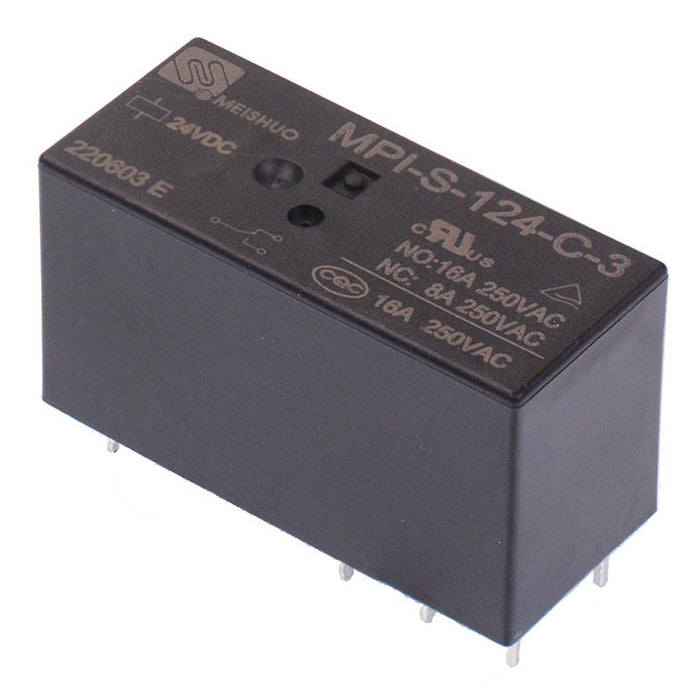

24V High Power PCB Relay 16A SPDT

by Meishuo
SKU 485808

MPN: MPI-S-124-C-3

Availability:
474 in stock
Original price £2.80 - Original price £2.80
Original price
£2.80 Inc VAT
£2.80 - £2.80
Current price £2.80 Inc VAT
24V miniature high power relay featuring SPDT contacts and 16A maximum switching current, suitable for PCB mounting.

  • 24V coil voltage
  • SPDT contact configuration
  • Sealed construction
  • Rated load: 16A 250VAC
  • Maximum switching current: 16A
  • Maximum switching voltage: 440VAC / 30VDC
  • Maximum switching power: 3000VA
  • Dimensions: 29 x 12.7 x 15.9mm (L x W x H)
  • Specification
    Ambient temperature -40°C to +105°C
    Back order lead time 120 Days
    Coil resistance 1066Ω
    Coil voltage 24VDC
    Contact arrangement SPDT
    Maximum continuous voltage 31.2VDC
    Maximum switching current 16A
    Maximum switching voltage 440VAC / 30VDC
    Mounting type PCB
    Number of contacts 5
    Power consumption 0.53W
    Terminal type Through Hole
