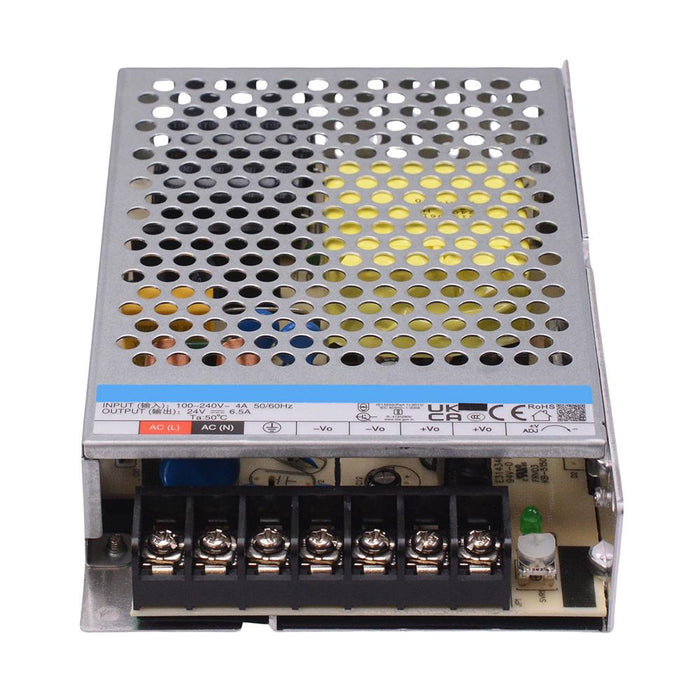

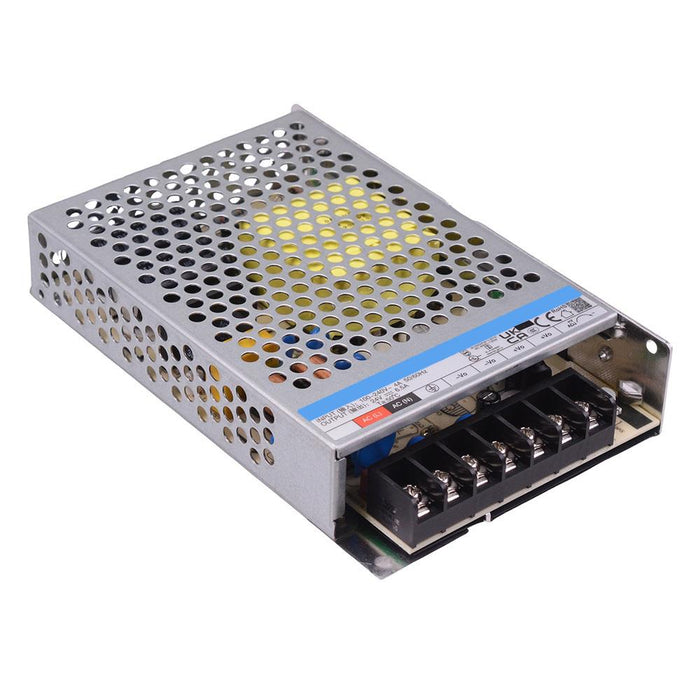

24V 6.5A Enclosed Switching Power Supply 150W
SKU 490398
MPN: SE150-20B24
Availability:
Only 2 left!
Original price
£22.35
-
Original price
£22.35
Original price
£22.35
£22.35
£22.35
-
£22.35
Current price
£22.35
24V enclosed industrial AC-DC power supply featuring a universal input and high efficiency. The power supply features low no load power consumption and excellent reliability. The power supply meets IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, IEC/EN60335, GB4943,IEC/EN61558 standards widely used in industrial, LED, street light control, electricity, security, telecommunications, smart home applications.
Output voltage: 24V Output current: 6.5A Power: 156W Adjustable output voltage range: 21.6-28.8V Input voltage: 85-264VAC, 120-370VDC Efficiency at 230VAC: 88% Output short circuit, over-current, over-voltage protection M3 screw terminals Wire range: 22-12AWG Dimensions: 159.0 x 97.0 x 30.0mm (length x width x height)
Specification
| Back Order Lead Time | 120 Days |
| Input Frequency | 47-63Hz |
| Input Voltage | 85-264VAC, 120-370VDC |
| Maximum Temperature | 70°C |
| MOQ | 1 |
| Output Connector | M3 Screw |
| Output Current | 6.5A |
| Output Voltage | 24VDC |
| Over Current Protection | Yes |
| Over Voltage Protection | Yes |
| Power Rating | 150W |
| Short Circuit Protection | Yes |
