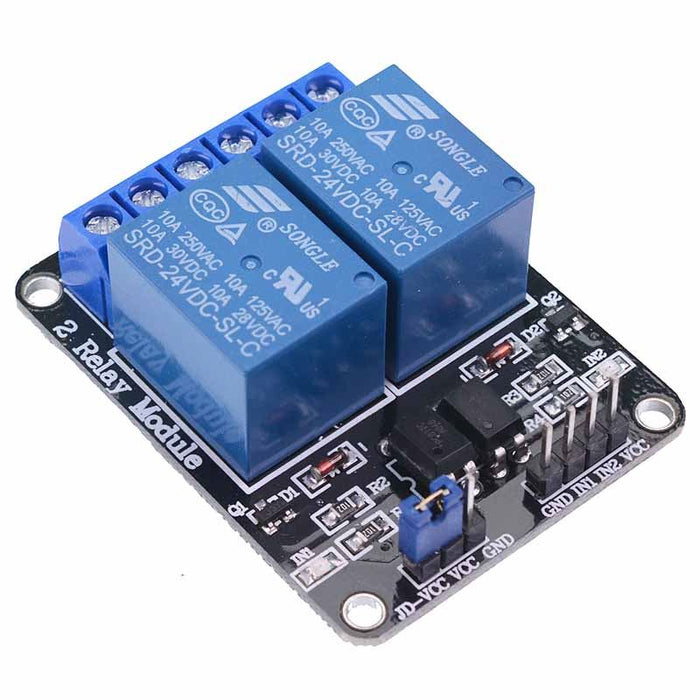

24V 2-Channel Relay Board Module

SKU 483194

MPN: 483194

Availability:
50 in stock
Original price £2.13 - Original price £2.13
Original price
£2.13 Inc VAT
£2.13 - £2.13
Current price £2.13 Inc VAT
Active low relay board with 24V relays capable of being switched on-off by an opto-isolated digital input. The relays are controlled by a microcontroller connected to the output pin and require a minimum 1.5V to switch the inputs ON. Suitable for 5V and 3.3V devices, these boards are perfect for Raspberry Pi, Arduino, PIC and various other microcontrollers.

  • 2 Channel
  • Maximum switching voltage: 250VAC / 30VDC
  • Maximum switching current: 10A
  • Module operating voltage: 24V
  • Each relay features an LED indicator
  • Dimensions: 51 x 39 x 18mm (Length x Width x Height)
  • Specification
    Back order lead time 30 Days
    Coil voltage 24VDC
    Number of channels 2
    Terminal type Pin Header
