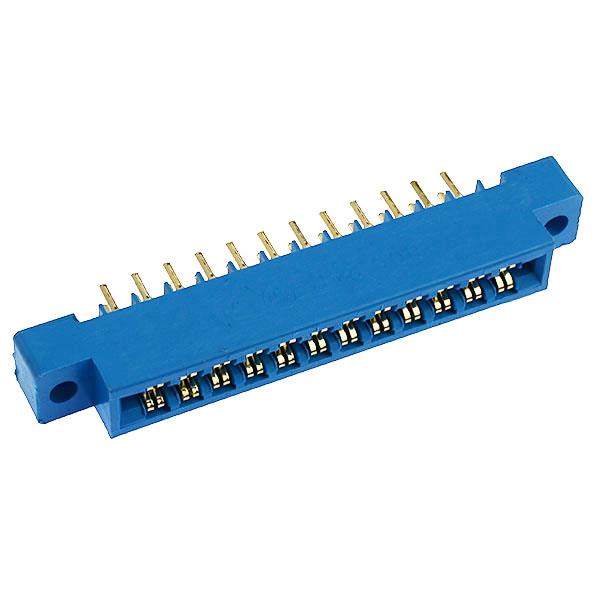

24 Pin Card Edge Connector 3.96mm

SKU 482066

MPN: 482066

Availability:
294 in stock
Original price £1.22 - Original price £1.22
Original price
£1.22 Inc VAT
£1.22 - £1.22
Current price £1.22 Inc VAT
24 pin card edge connector featuring 3.96mm contact pitch and dual rows.

  • Current rating: 2A
  • Contact pitch: 3.96mm
  • Row pitch: 3.96mm
  • Housing material: Glass filled PBT UL94V-0
  • Contact material: gold plated brass
  • Accepts up to 2mm board
  • Pin width: 1mm
  • Mounting pitch: 38.9mm
  • Dimensions: 68.9 x 9 x 12mm (Length x Width x Height)
  • Specification
    Back order lead time 30 Days
    Contact material Gold Plated Brass
    Contact pitch 3.96mm
    Current rating 2A
    Housing material PBT
    Mounting type PCB
    Number of ways 24
    Operating temperature -45°C to +105°C
    Termination method Solder
