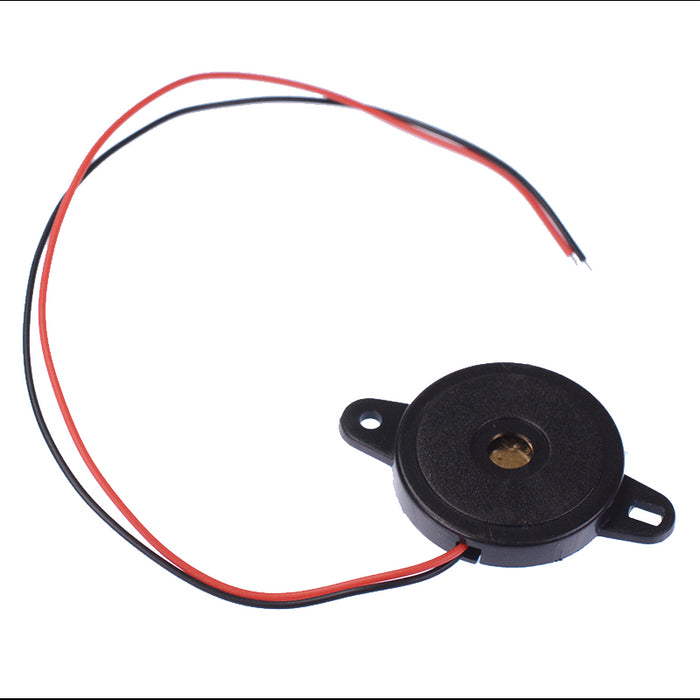

23mm Piezo Transducer 120mm Leads

SKU 484792

MPN: 484792

Availability:
254 in stock
Original price £0.58 - Original price £0.58
Original price
£0.58 Inc VAT
£0.58 - £0.58
Current price £0.58 Inc VAT
23mm piezo transducer suitable for use with a 12V peak square wave, capable of generating a range of audible tones and frequencies. The transducer is suitable for panel mount applications and provides a minimum output of 80dB at 30cm.

  • Rated voltage: 12V peak square wave
  • Maximum allowable voltage: 30V peak square wave
  • Rated current: 3mA at 4.0kHz / 12V peak square wave
  • Minimum sound level: 80dB at 4.0kHz / 12V peak square wave / 30cm
  • Resonant frequency: 4.0kHz
  • Dimensions: 23 x 4.6mm (diameter x height)
  • Mounting hole pitch: 28mm
  • 120mm leads
  • Specification
    Back order lead time 45 Days
    Frequency 4.0KHz
    Input voltage 30V Max Peak Square Wave
    Mounting style Panel Mount
    Operating temperature -20°C to +60°C
    Rated voltage 12VDC
