22K Linear 16mm Right Angle Splined Potentiometer
SKU 482476
MPN: 482476
Availability:
628 in stock
Original price
£0.44
-
Original price
£0.44
Original price
£0.44
Inc VAT
£0.44
-
£0.44
Current price
£0.44
Inc VAT

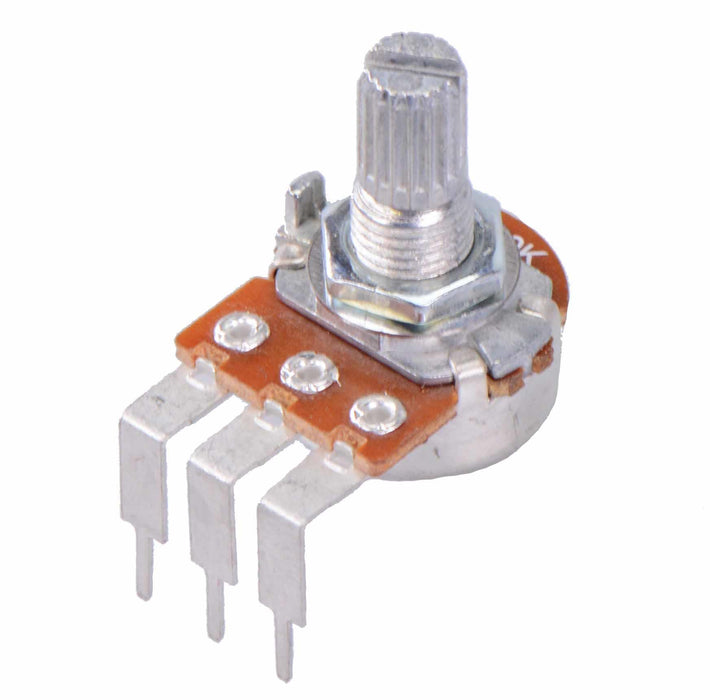

22K linear carbon track 16mm potentiometer featuring a splined 6mm shaft suitable for horizontal PCB mounting.
Linear taper Standard 16mm metal body Right angle PCB contacts 20% tolerance Panel cut-out: 7mm 5mm terminal pitch 15mm shaft length
Specification
| Back order lead time | 45 Days |
| Dimensions | 17mm Diameter |
| Maximum voltage | 200V |
| Mounting hole diameter | 7mm |
| Mounting type | PCB |
| Operating temperature | -10°C to +70°C |
| Pitch | 5mm |
| Power rating | 0.125W |
| Resistance | 22KΩ |
| Shaft diameter | 6mm |
| Taper | Linear |
| Termination type | Pin |
| Tolerance | ±20% |
| Total rotation | 300° |
